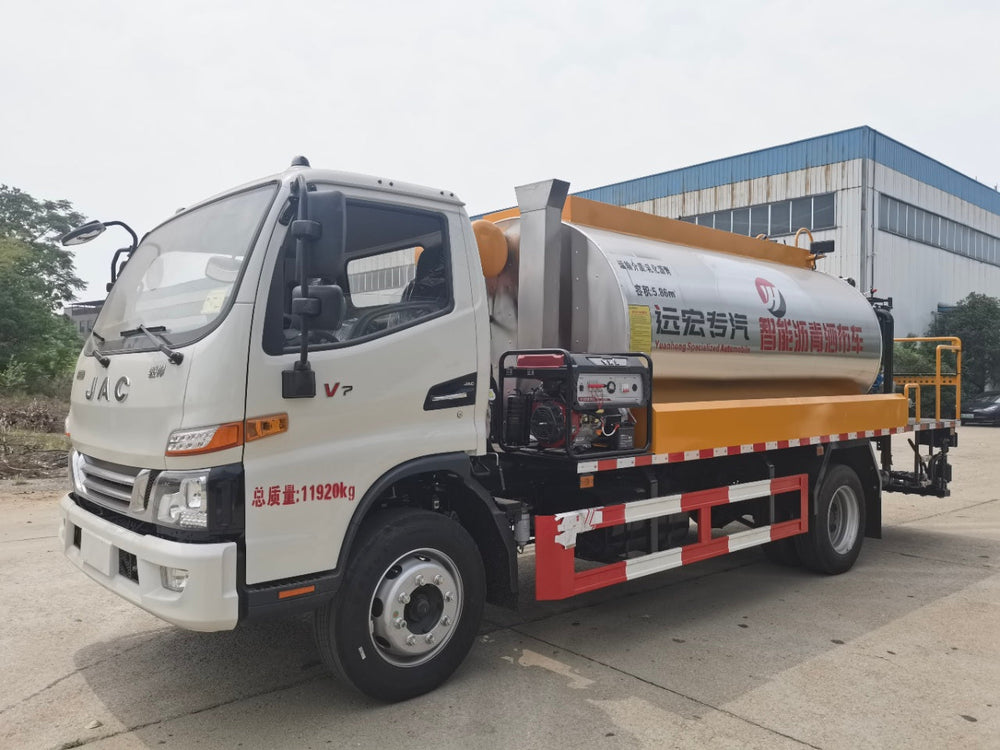

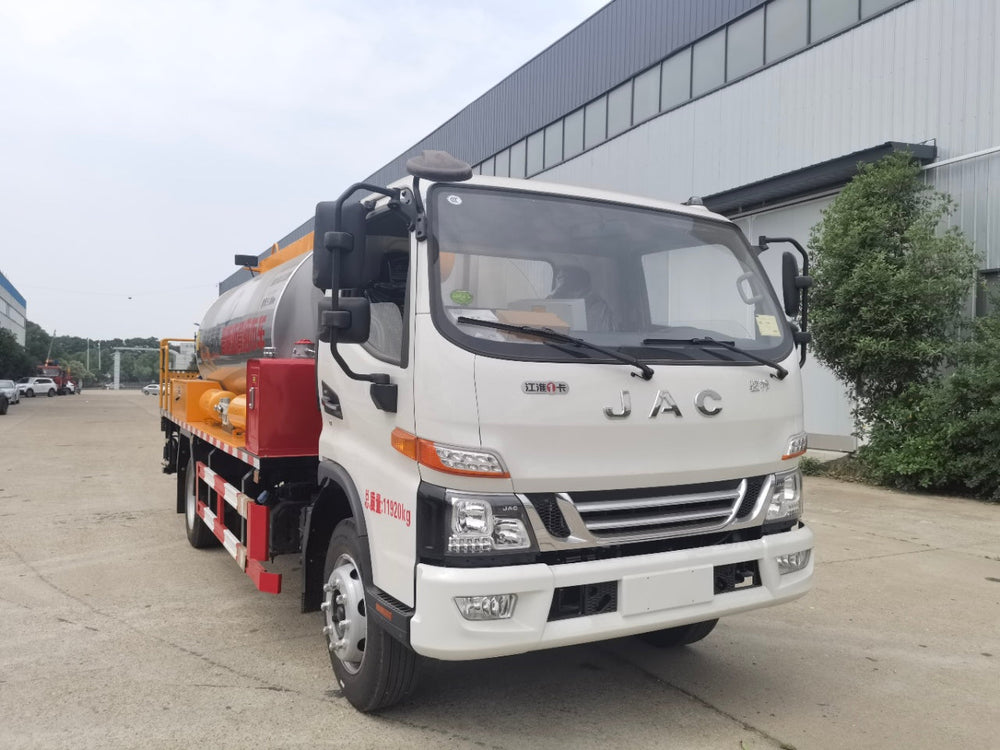

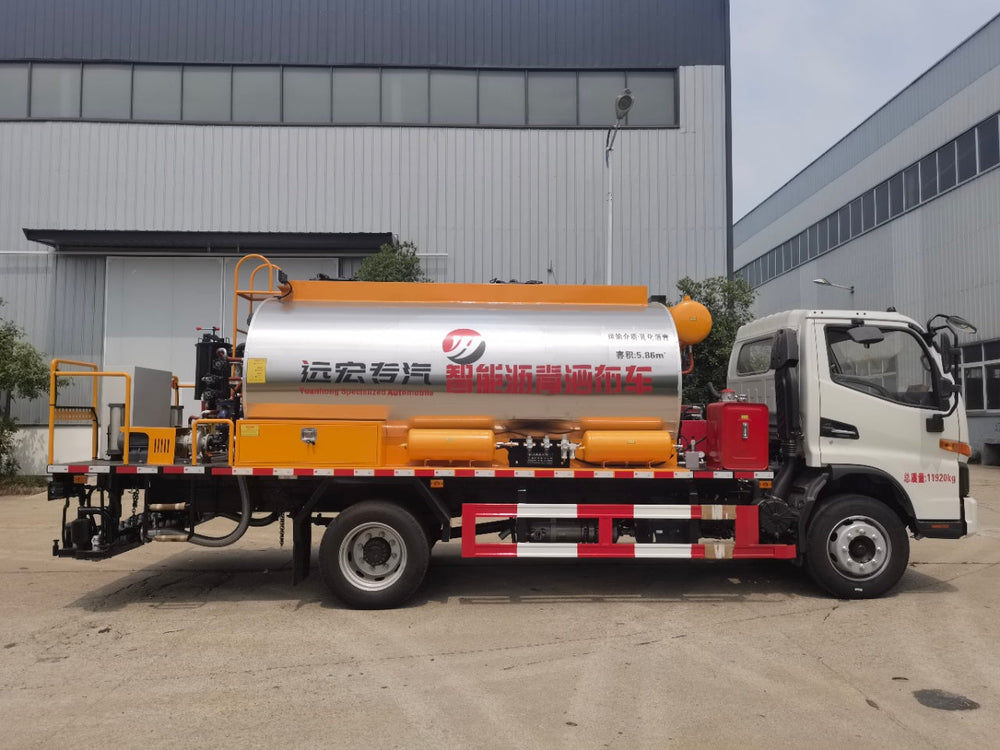

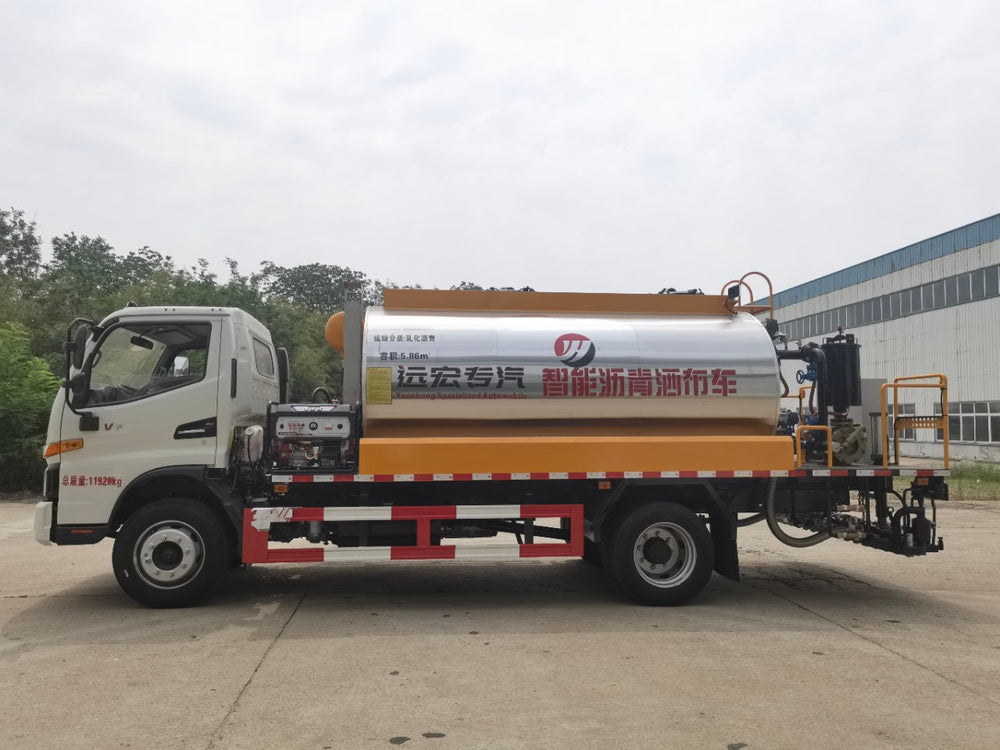

JAC 7.5T Asphalt Distributor Truck
Request a Quote Now
1. Chassis Configuration
| Parameter | Value |
|---|---|
| Chassis Brand & Model | JAC Junling V7 (National VI) |
| Engine Power | Yuchai 170 HP |
| Transmission | Wanliyang 8-Speed Gearbox |
| Wheelbase | 3845 mm |
| Tire Specification | 245/70R19.5 |
| Cab Interior | Air Conditioner, Electric Windows, Multifunctional Steering Wheel |
| Electrical System | Dual Battery, Electric Heated Rearview Mirror |
| Fuel Tank | 130 L Fuel Tank |
2. Tank Body & Insulation System
| Parameter | Value |
|---|---|
| Tank Material | 4.5mm Carbon Steel Plate |
| Tank Volume | 7.5 m³ |
| Insulation Structure | Three-Layer Insulation |
| Outer Insulation Layer | Stainless Steel Mirror Finish Cladding |
| Internal Insulation Filling | Flame-Retardant Rock Wool |
| Insulation Thickness | 50 mm |
3. Asphalt Pump & Hydraulic System
| Parameter | Value |
|---|---|
| Asphalt Pump Model | QGB680 High-Viscosity Insulated Asphalt Pump |
| Asphalt Pump Drive Motor | Taylor Series High-Torque Internal Five-Star Hydraulic Motor |
| Hydraulic Pump | F563 Aluminum Alloy Gear Pump |
| Hydraulic Flow Control | Imported Electro-Hydraulic Proportional Flow Regulating Valve YZR-2MDKZ100A.00 (HydraForce, USA) |
4. Heating & Temperature Control System
| Parameter | Value |
|---|---|
| Burner Brand & Model | Riyadh G20 (Imported from Italy) |
| Heating Method | Full-Process Heat-Conducting Oil Heating (Tank & Pipelines) |
| Temperature Control Module | Imported PLC Temperature Control Module, Computer Control (Izumi, Japan) |
| Heat-Conducting Oil Pump | BRY40-25-160 (Botou, Hebei) |
| Generator | Yihu V6500SE Gasoline Generator |
| Radiator | AH1012-CD24-A Risheng |

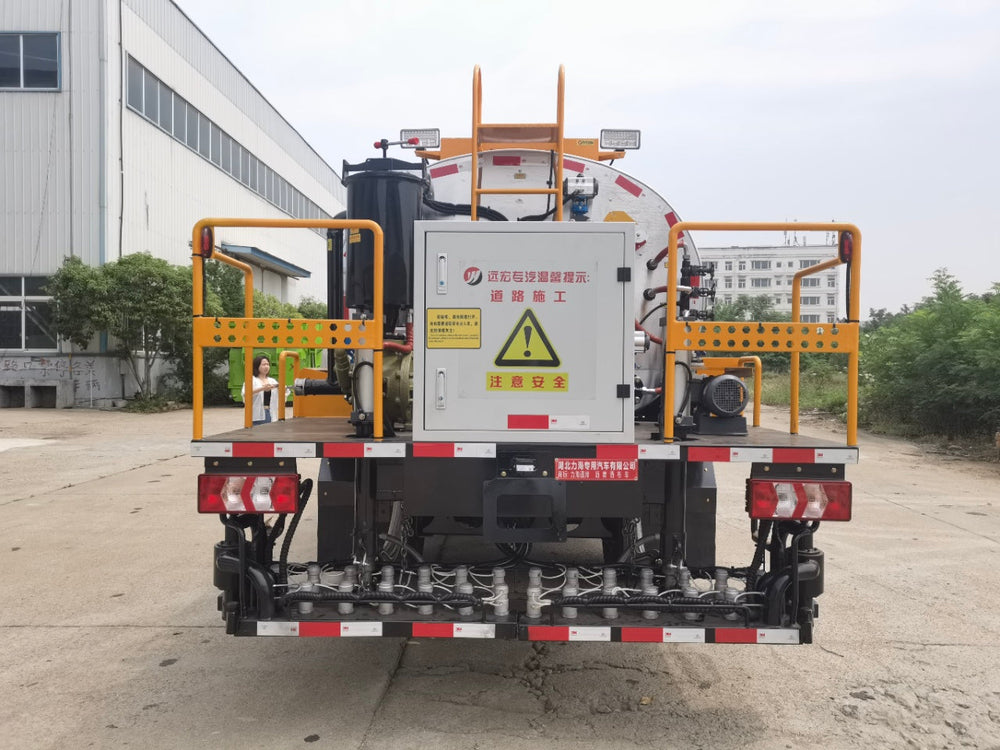

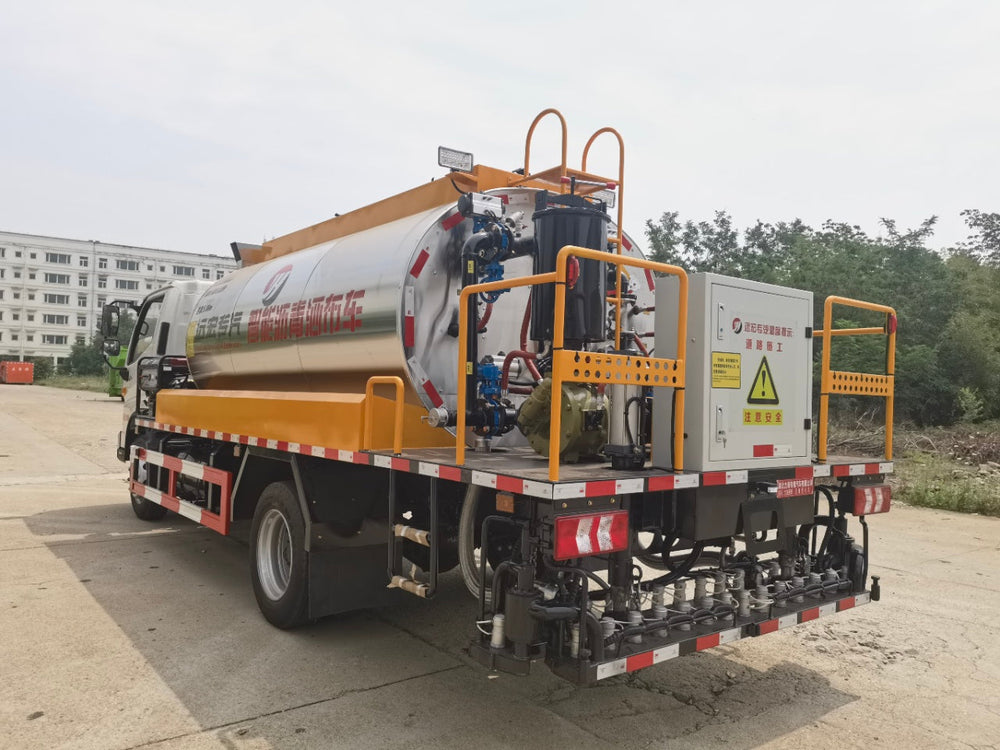

5. Spray Bar & Nozzle System
| Parameter | Value |
|---|---|
| Spray Width Range | 1.2 m – 4.5 m (precise triple overlap) |
| Spray Volume Range | 0.2 – 2 kg/m² |
| Electric Control Cylinders | 30 sets of stainless steel full electric-control cylinders |
| Nozzles | Pure copper nozzles |
| Width Control | Computer-precise spray width control |
6. Control System
| Parameter | Value |
|---|---|
| Control Type | Intelligent Control |
| Spray Volume Linkage | Precisely linked with vehicle speed |
| In-Cab Display | 10-inch Super Large Touch Screen Control System |
7. Standard Features & Accessories
| Feature | Description |
|---|---|
| Asphalt Circulation | Full circulation with pump suction/discharge function |
| Cleaning System | Compressed air pipeline cleaning + diesel cleaning |
| Level Gauge | Float-type level gauge installed inside tank |
| Tank Thermometer | Bimetal thermometer installed outside tank body |
8. Applicable Spray Media
| Medium Type | Description |
|---|---|
| Emulsified Asphalt | Suitable |
| Hot Asphalt | Suitable |
| Modified Emulsified Asphalt | Suitable |
