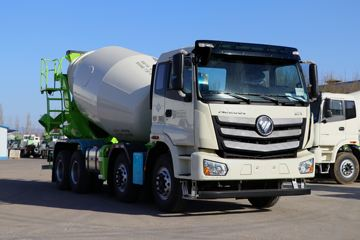

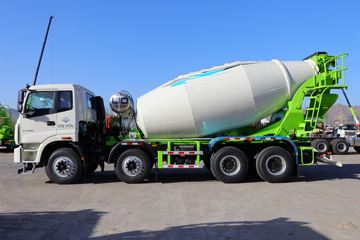

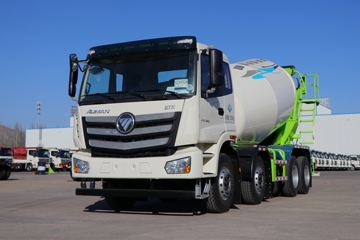

Foton Auman ETX 340hp 8X4 7.87 cubic meter Concrete Mixer Truck
Request a Quote Now
This vehicle is an 8×4 drive concrete mixer truck of the Foton Auman ETX series. It adopts a chassis supplied by Foton Daimler Automotive and is equipped with professional mixer superstructure branded LESHA. Its core power is provided by a Foton Cummins 340-horsepower National V emission standard diesel engine, mated with a 10-speed manual transmission. The effective mixing volume reaches 7.87 cubic meters. Designed specifically for urban construction concrete transportation and infrastructure engineering scenarios, it features reliable heavy-load performance, excellent trafficability and high efficiency of mixing and transportation. The total vehicle mass is 31 tons, complying with domestic commercial vehicle regulatory requirements.
| Parameter Item | Parameter Value |
|---|---|
| Announcement Model | BJ5313GJB-LP |
| Chassis Model | BJ5313GJB-AZ |
| Drive Form | 8×4 (Front Four Rear Eight) |
| Overall Body Dimensions | 10.22m × 2.55m × 3.99m |
| Front Overhang/Rear Overhang | 1.532m / 2.488m |
| Wheelbase | 1800+3050+1350mm |
| Front Track/Rear Track | Front Axle: 2010/2010mm; Rear Axle: 1860/1860mm |
| Curb Weight | 13.7 tons |
| Rated Load Capacity | 17.17 tons |
| Gross Vehicle Weight (GVW) | 31 tons |
| Maximum Design Speed | 80km/h |
| Origin | Zhangjiakou, Hebei |
| Applicable Scenarios | Concrete transportation scenarios such as urban construction concrete transfer, highway infrastructure, and large-scale engineering construction |
