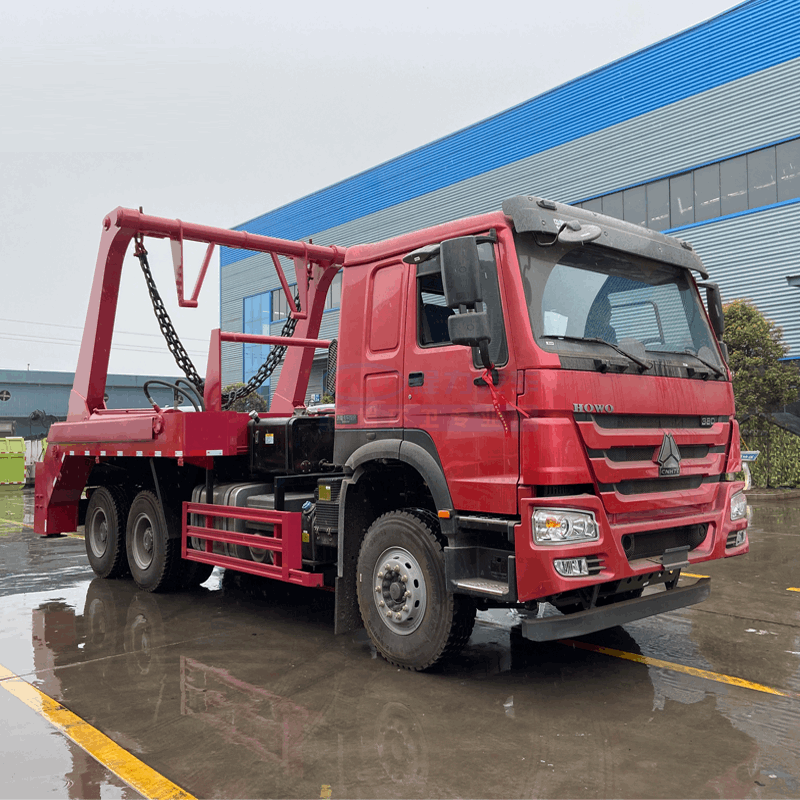

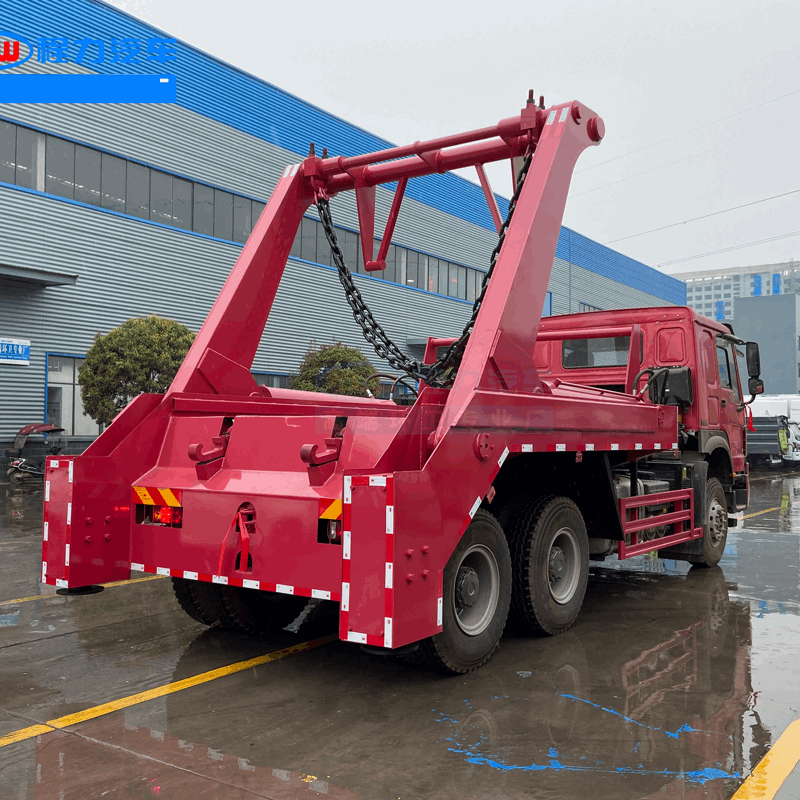

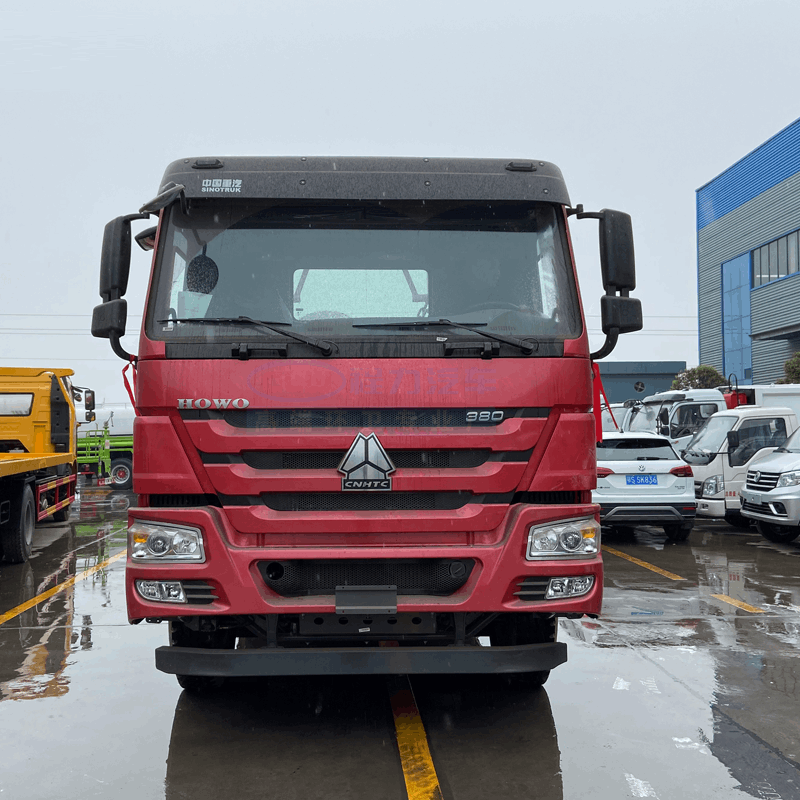

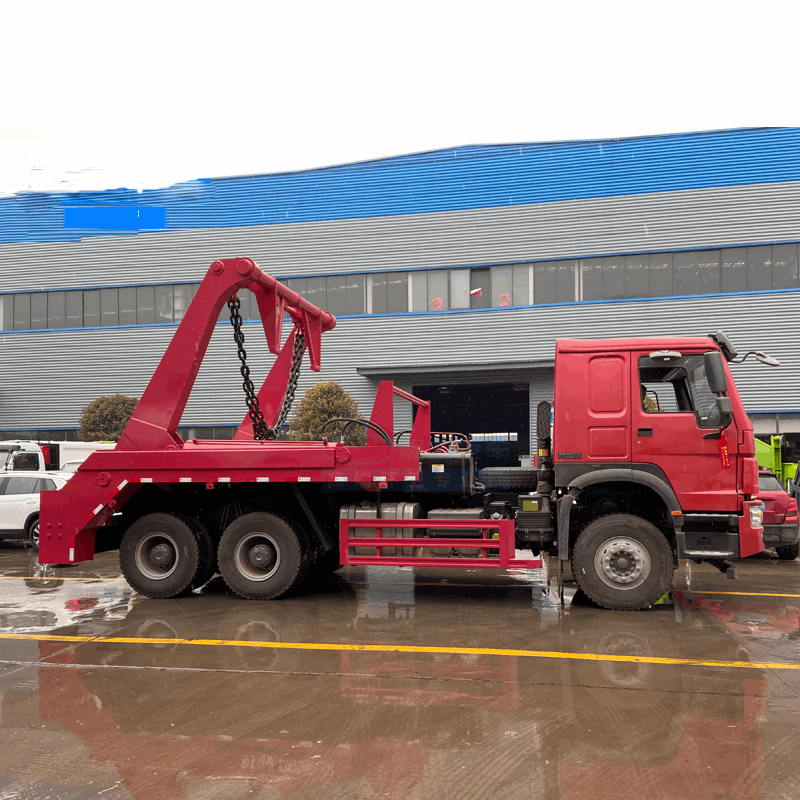

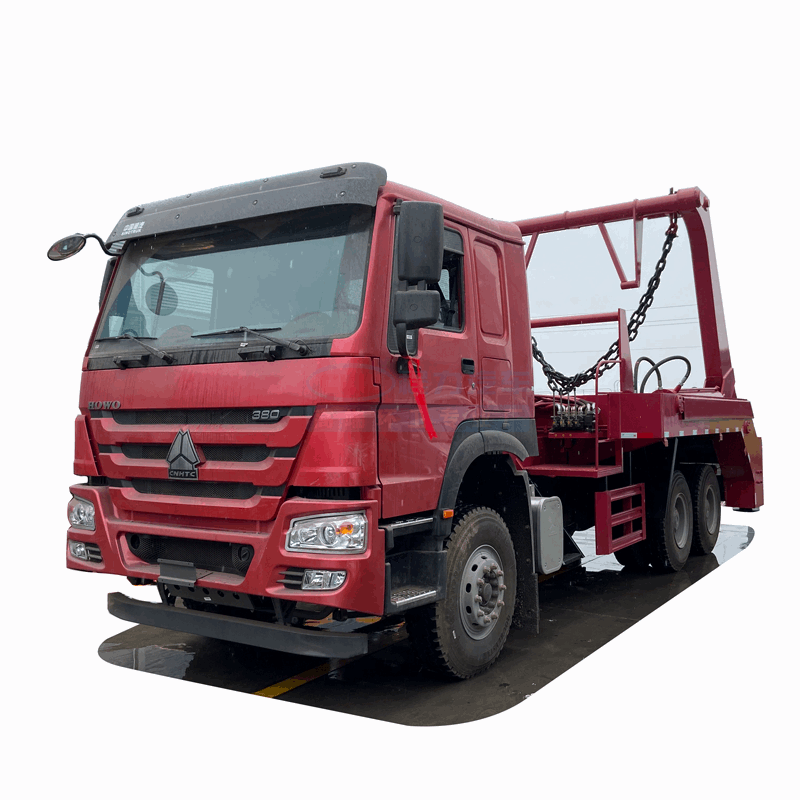

HOWO 6*4 Swing arm garbage truck
Request a Quote Now
It is suitable for national common garbage bucket, with self-unloading function, hydraulic operation, garbage bucket can be lifted up and down, swing arm working cycle time: 60S. The characteristic of swing-arm garbage truck is that the bucket is separated from the body, which can realize the joint operation of a car and multiple buckets, and cycle transportation, which fully improves the transportation capacity of the vehicle, especially suitable for short-distance transportation, such as the cleaning and transportation of urban garbage by the sanitation department.
| Model: | CL5251ZYS3S | Volume: | 22cbm |
| Total Weight: | 25000kg | Curb Weight: | 15700kg |
| Size of Outter: | 10260*2500*3450(mm) | Loading position： | Rear end loading |
| WheelBase: | 4375+1400mm | Tire Size: | 11.00R20 |
| Transmission: | 6-Speed | Tire Number: | 10 |
| Front/Rear Axle: | 4.8T/11T+11T | Brake System: | Air Brake |
| Fuel Type: | Diesel | Emission Standard: | Euro 5 |
| Engine Model: | WP7.240E51 | Power: | 176kw/240HP |
| Displacement: | 2400ml |
| Standard Equipments: |
| The power of the system comes from the engine, which is separated by a power take-off, which drives the gear pump to work. The hydraulic system consists of oil tank and filtration system, oil pump, multi way directional valve, one-way throttle valve, oil cylinder, oil pipe, etc. |
