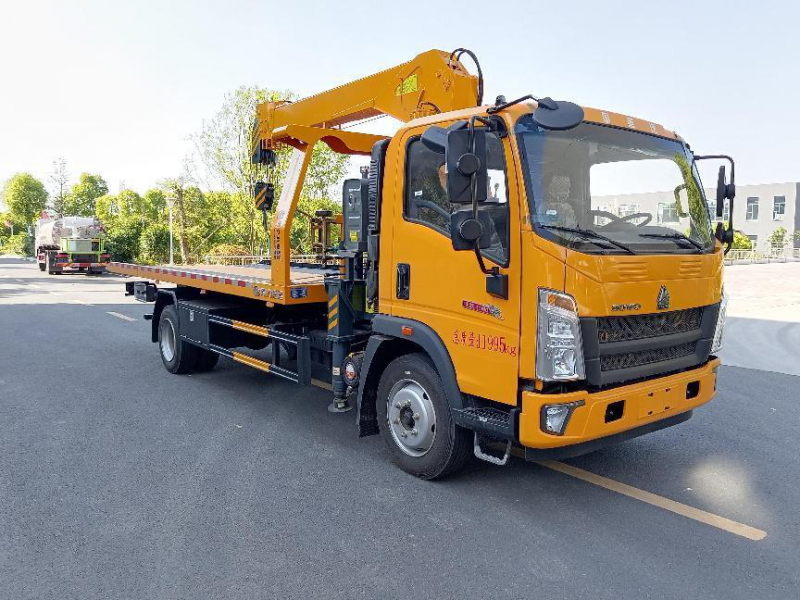

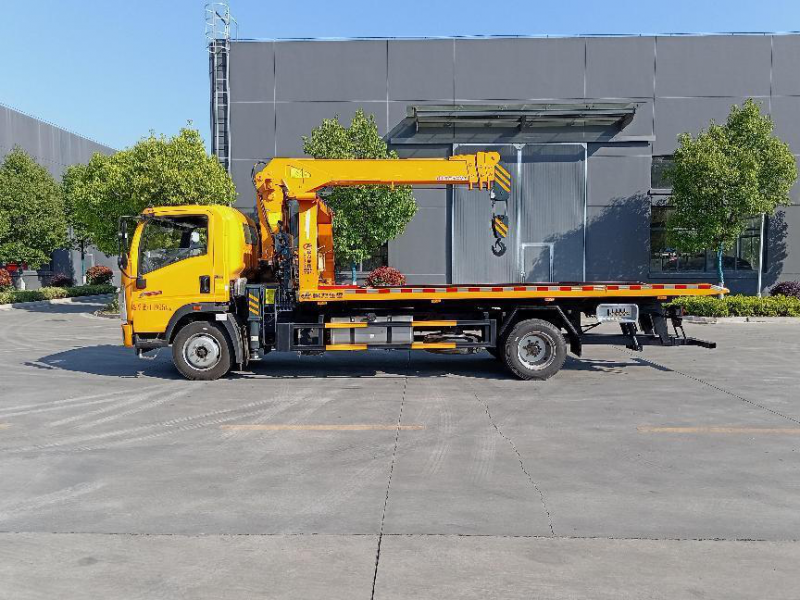

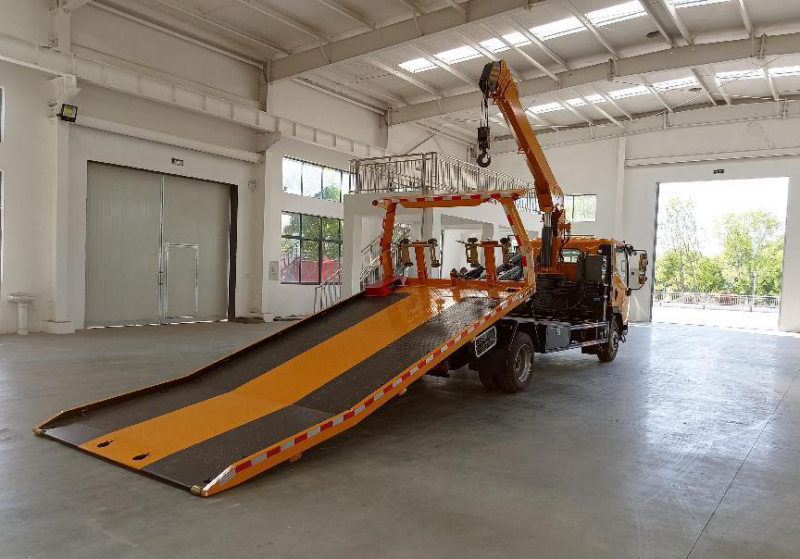

HOWO 5-Ton Flatbed Wrecker Truck with Crane
Request a Quote Now
Chassis Configuration
Wheelbase: 4500mm, Weichai 190 horsepower engine, 245/70R19.5 vacuum tires, 8-speed transmission, 8-ton rear axle, factory air conditioner, central locking system with power windows and remote key, ABS, multi-functional steering wheel, air horn and sunroof.
Chassis Model: ZZ1127H4515F1
Superstructure Configuration
5-ton wrecker superstructure, 5-ton winch, 25-meter steel wire rope, bilateral linked operation system, 6mm thick patterned plate. The flatbed is 5.8m long and 2.48m wide. It can be fitted with a 4–5 ton straight-arm crane. Hydraulic tilting tailboard and 16mm thick manganese steel frame are optional extras.
Technical Parameters
Ground clearance of flatbed: less than 1.2 meters. The 5-ton superstructure can carry a maximum load of around 8 tons. Curb weight: 8670kg (subject to actual vehicle weight), gross vehicle weight: 11995kg.
