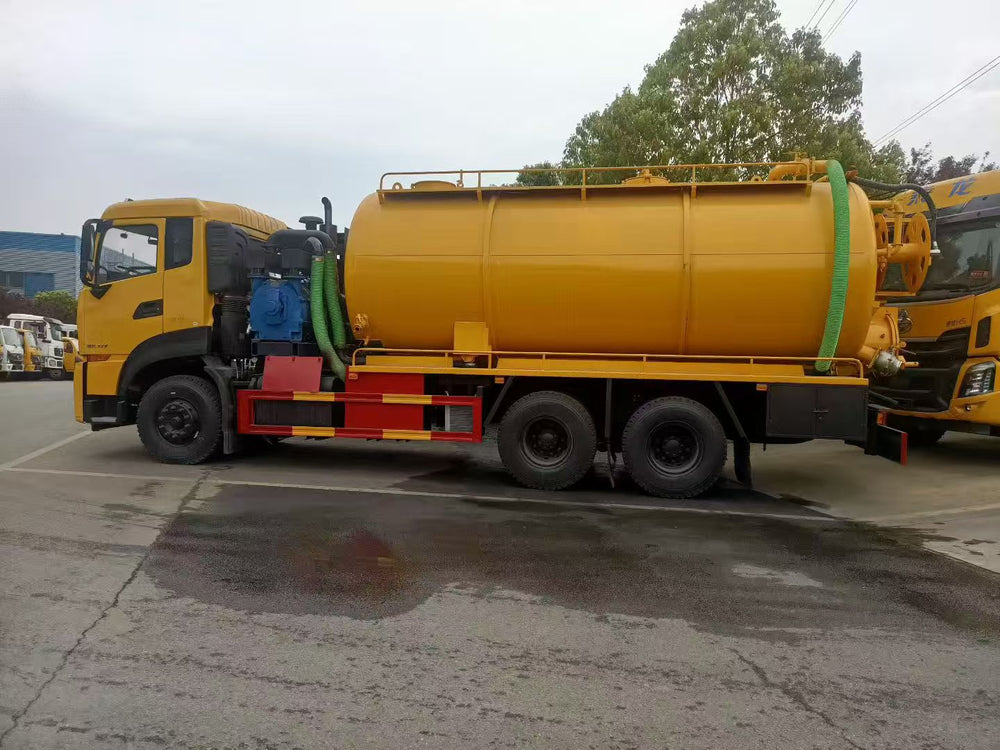

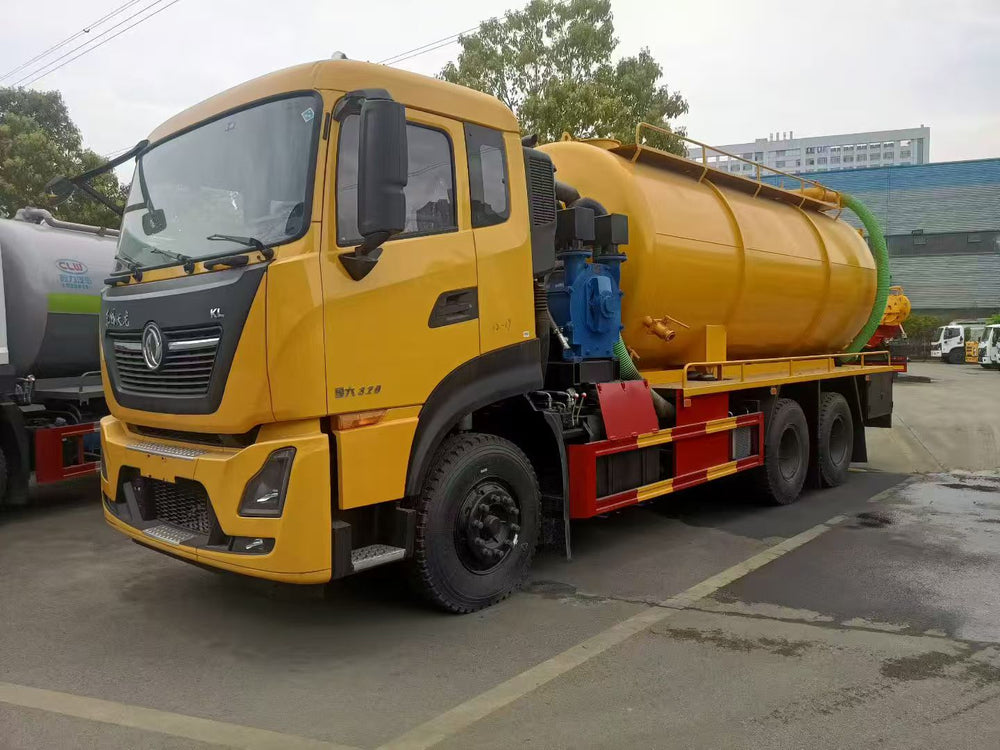

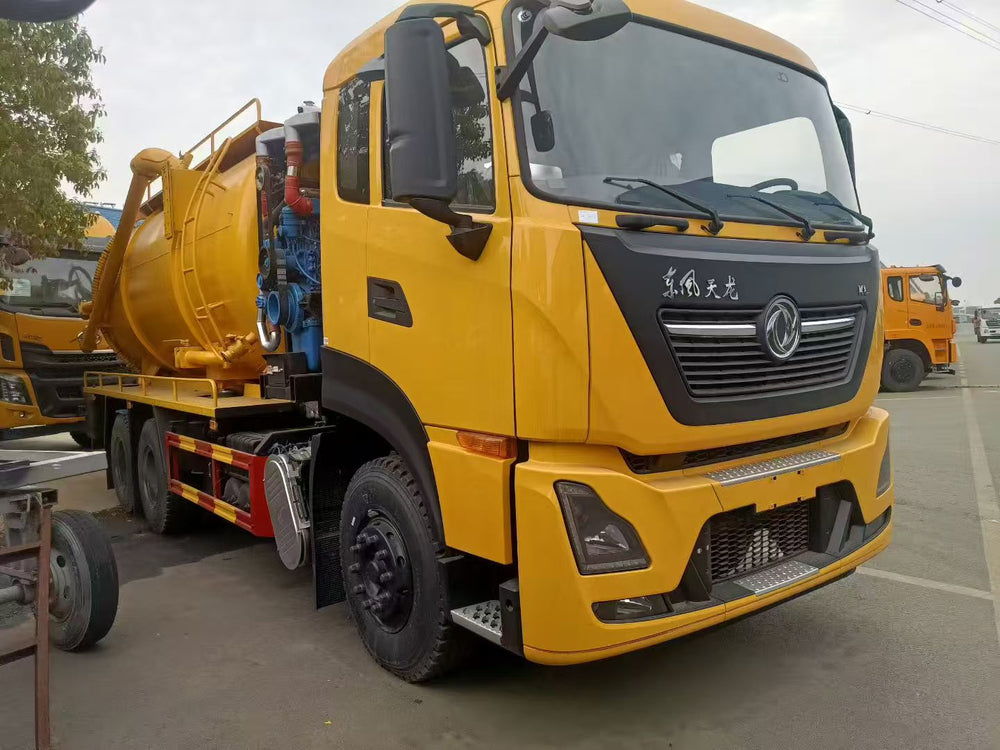

Dongfeng Tianlong 22m³ combo cleaning & vacuum truck
Request a Quote Now
Model: CL5250GQW6CC
(1) Chassis Configuration:
-
Cummins 320 HP diesel engine
-
FAST manual transmission
(2) Superstructure & Tank Configuration:
-
Total tank volume: approximately 22 cubic meters
-
Constructed from 8mm carbon steel plates
-
Clean water compartment: approximately 5 cubic meters; remaining capacity dedicated for vacuum sludge collection
-
The two compartments are interconnected via a ball valve for operational flexibility
-
A bulkhead is installed between the two compartments for secure separation
-
Equipped with a Pinfeng 350-flow-rate high-pressure cleaning pump
-
Supplied with 100 meters of high-pressure hose
-
258 water-ring vacuum pump driven by a 420 HP auxiliary engine
-
Hose reel is mounted on the rear head with 180-degree rotation capability
-
Rear head is hydraulically operated for opening and closing
-
One 800mm cement-type discharge cover on the rear head for sludge dumping, with hydraulic opening mechanism
-
One 150mm side-mounted swing-type ball valve
-
One 150mm rear outlet ball valve
-
One 100mm rear ball valve
-
Interior of the tank is lined with stainless steel plates for enhanced corrosion and abrasion resistance
-
Heavy-load rated design throughout the vehicle
-
Arrow-type warning lights mounted at the rear of the tank
-
Equipped with a visual sludge inspection window
-
Comes with 8 meters of vacuum suction hose
-
All other standard factory-fitted accessories are included as per manufacturer's specifications
