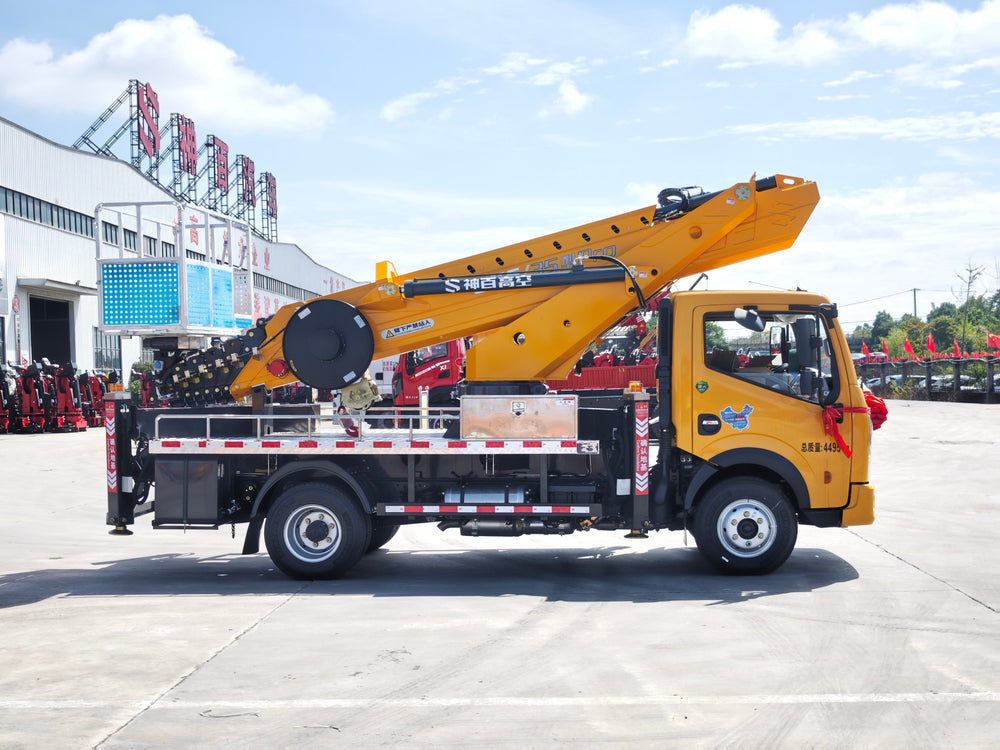

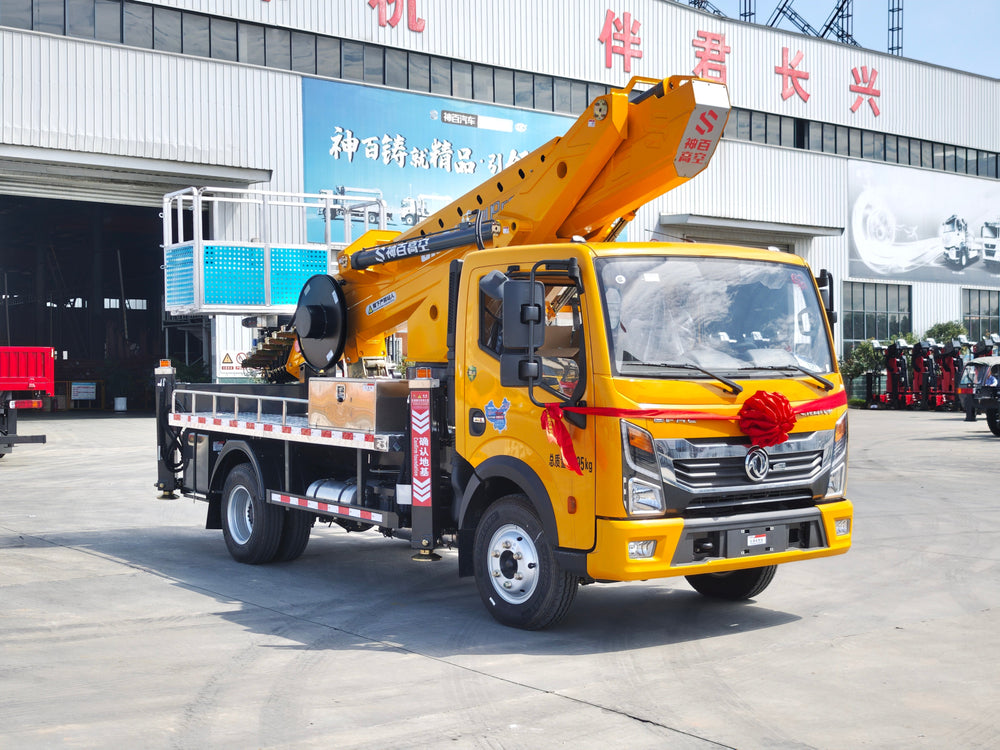

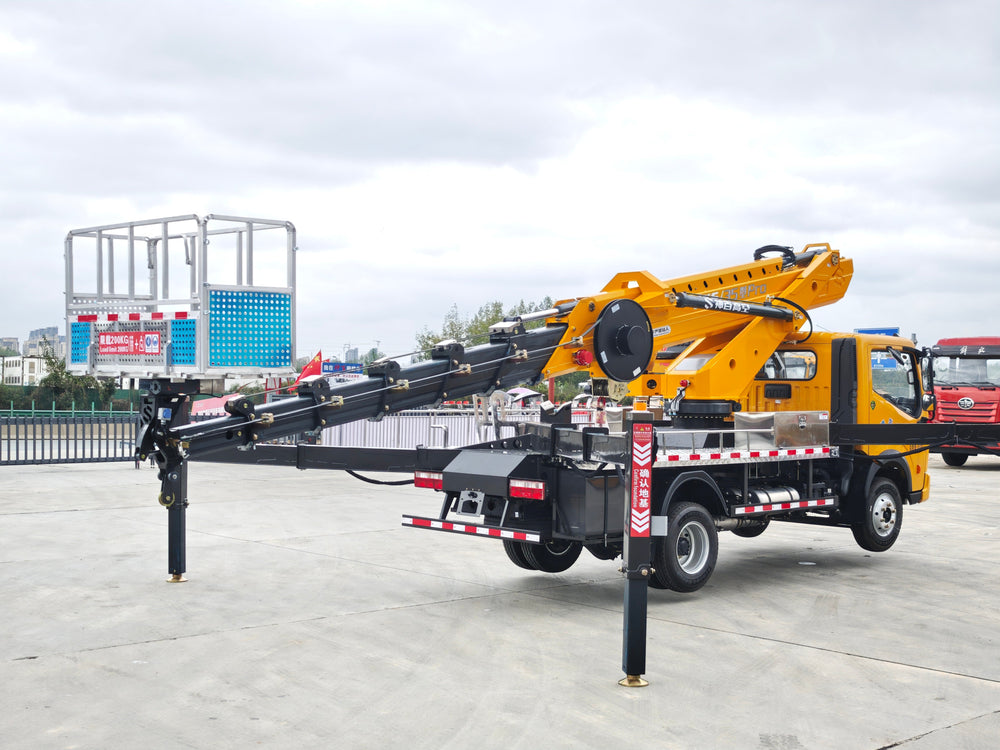

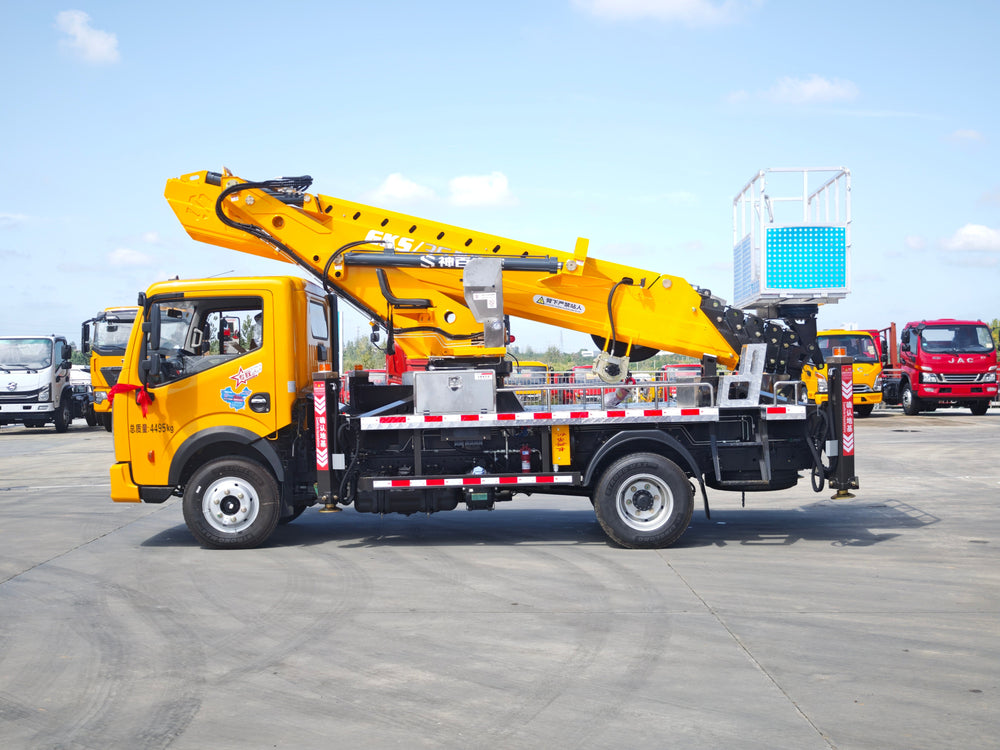

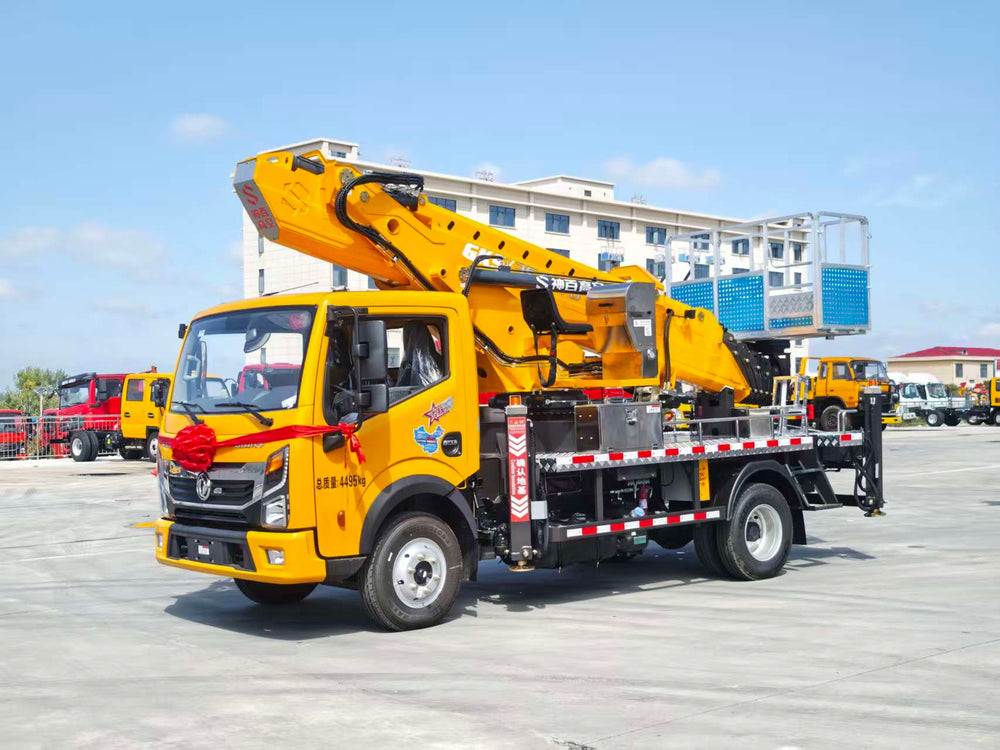

DongFeng GKS35Pro Aerial Work Platform Truck

1 / 11

Request a Quote Now

Item	Parameter
Chassis	Dongfeng Heavy-duty Xingyun 1900 Cab, Engineering-grade Heavy-load Chassis
Gross Vehicle Weight	4495 kg
Curb Weight	4300 kg
Engine	Yunnei 160 HP Diesel Engine
Transmission	Changtai 8-speed with synchronizer
Wheelbase	3308 mm, Double-layer Widened Frame, 6T Rear Axle
Overall Dimension	5995×2200×3150 mm
Tire Spec	700R16LT
Brake	Air Cut-off Brake

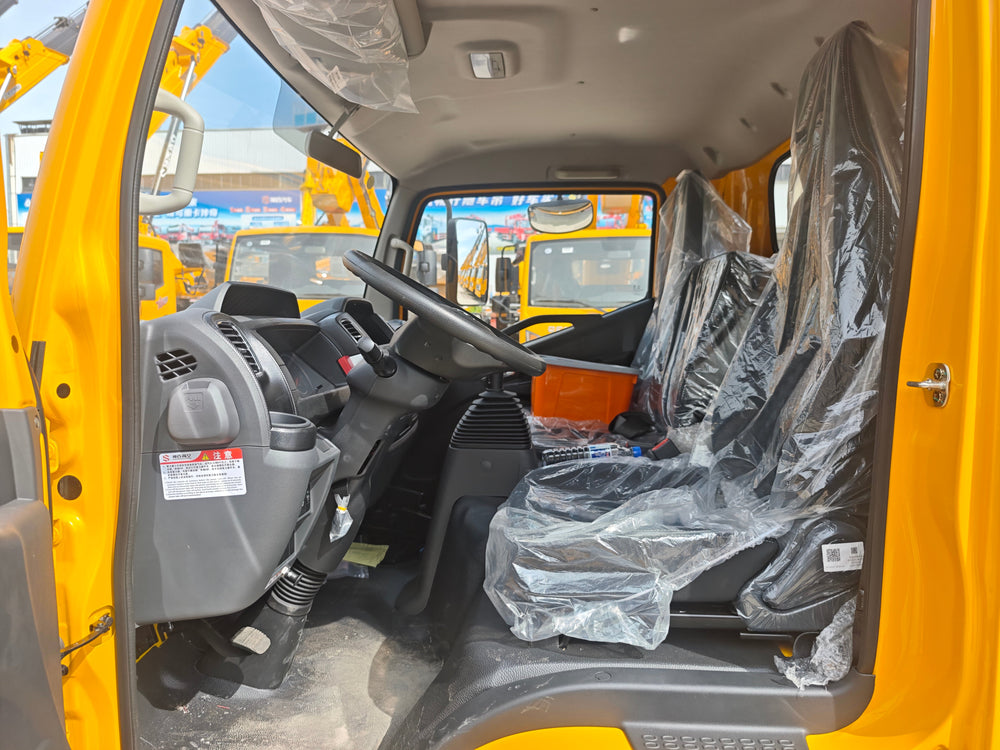

Standard Accessories	Power Window, Air Conditioner, Central Door Lock
Core Advantage	Unique nationwide model with engineering heavy chassis, 7-section boom for 33.8m blue-plate certification

2. Superstructure (GKS35 Pro)

Item	Parameter
Max Working Height	33.8 m
Max Working Radius	16.5 m
Rated Platform Load	200 kg
Boom Slewing	360° Full Rotation
Platform Size	1800×700×1000 mm with flip plate & cargo platform, full aluminum alloy

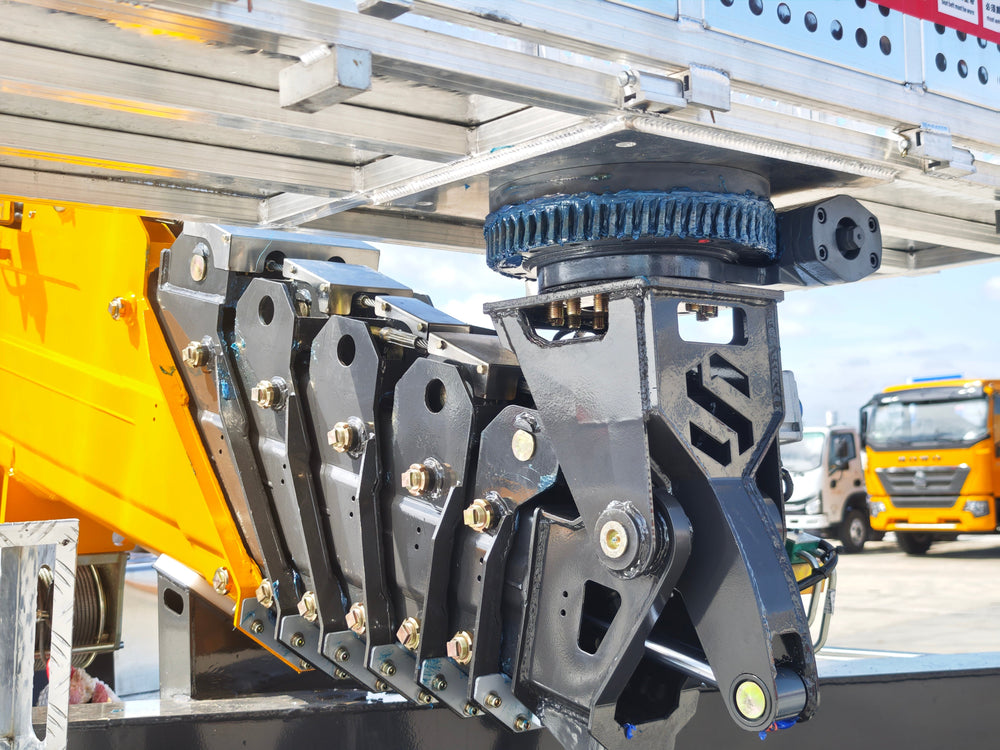

Platform Rotation	Unlimited 360° Rotation
Boom Structure	7-section boom, 6-section synchronous extension; spare steel cable for emergency lowering
Boom Material	Lightweight 960 High-strength Steel Plate
Outrigger	X-type, 4 independent double-stage legs; Span: Trans 5800mm / Long 6700mm
Subframe	Box-type Subframe + 3-layer Trapezoidal Reinforced Slewing Base

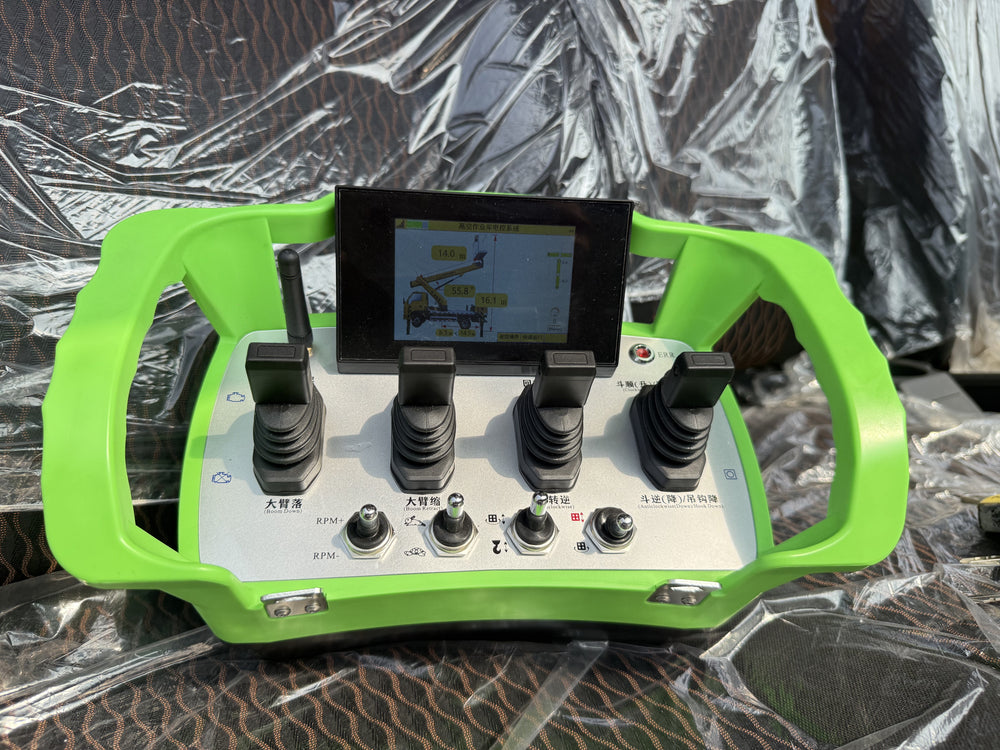

Control System	Domestic Famous ECU, Wireless Remote + Central Control with Display

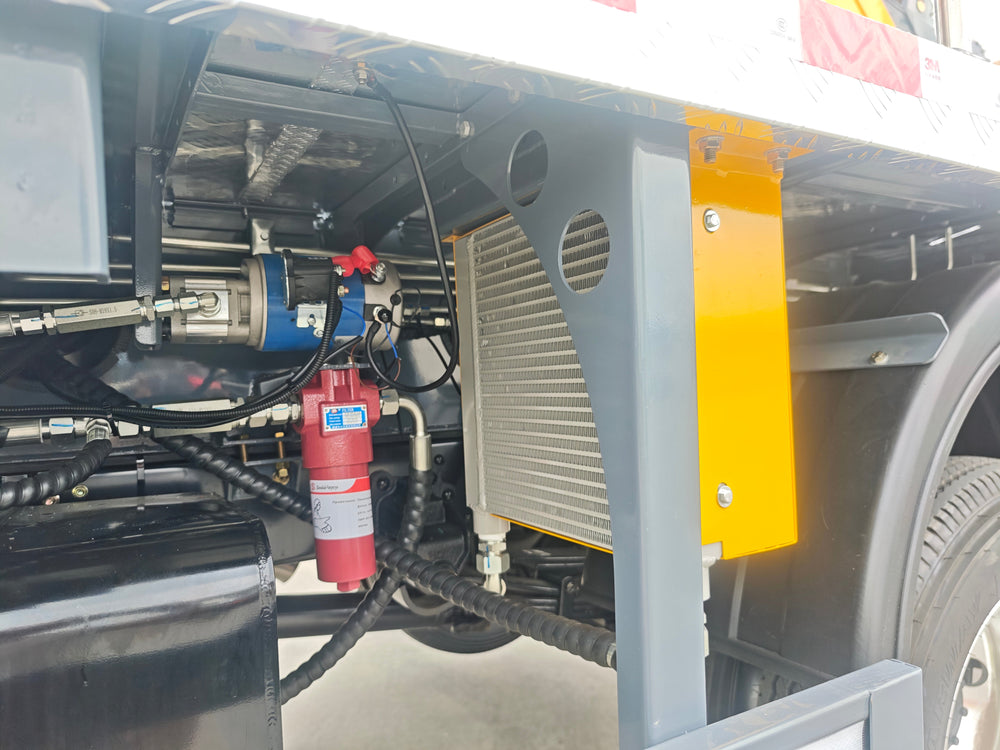

Hydraulic System	Electro-hydraulic Proportional Valve, Stepless Speed + Emergency Power Unit
Walkway	Anti-slip Aluminum Alloy Walkboard
Safety Devices	Upper-lower Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Outrigger Protection, Radiator, 220V External Power
Optional Parts	1T Winch, Upper Operation Cabin
Total Boom Length	30.3 m
Whole Vehicle Height	3.15 m
