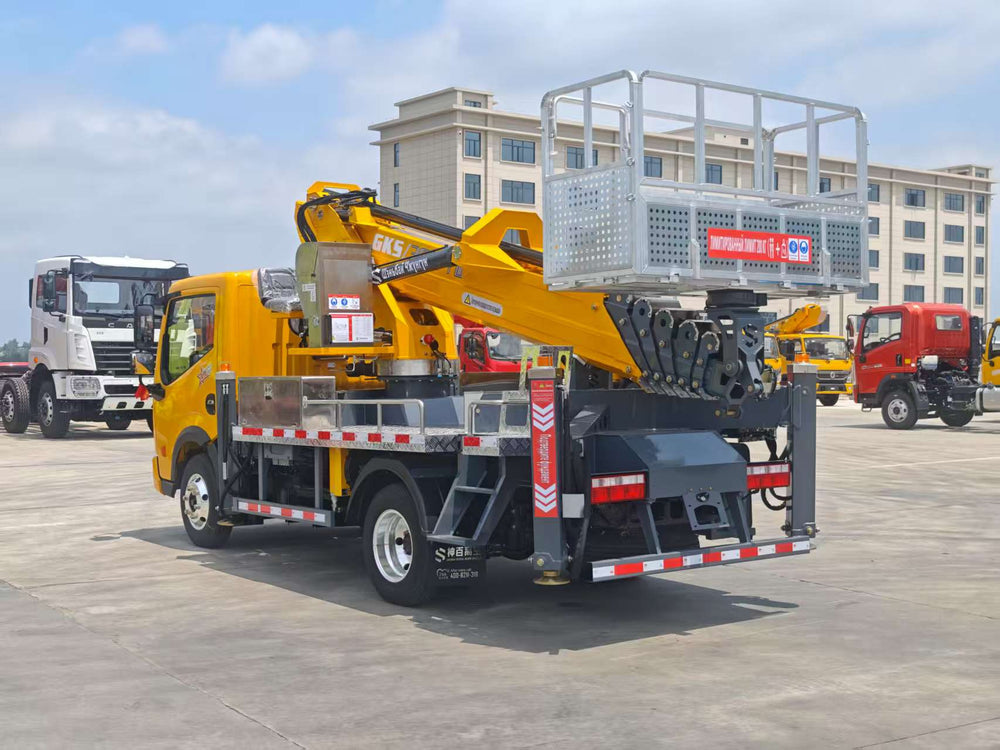

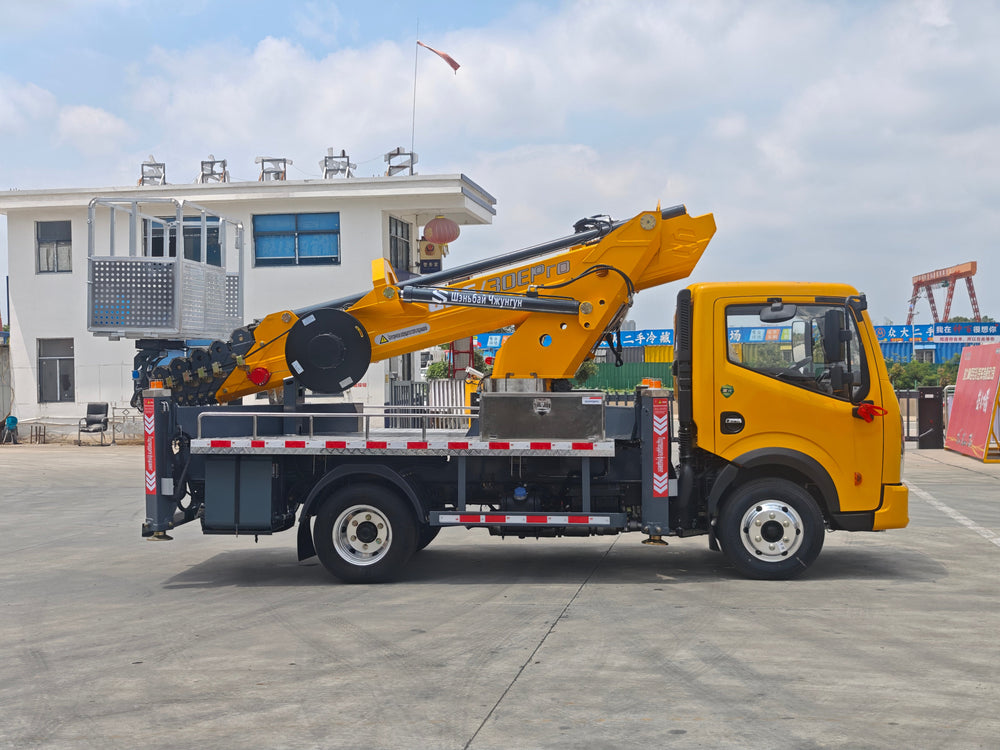

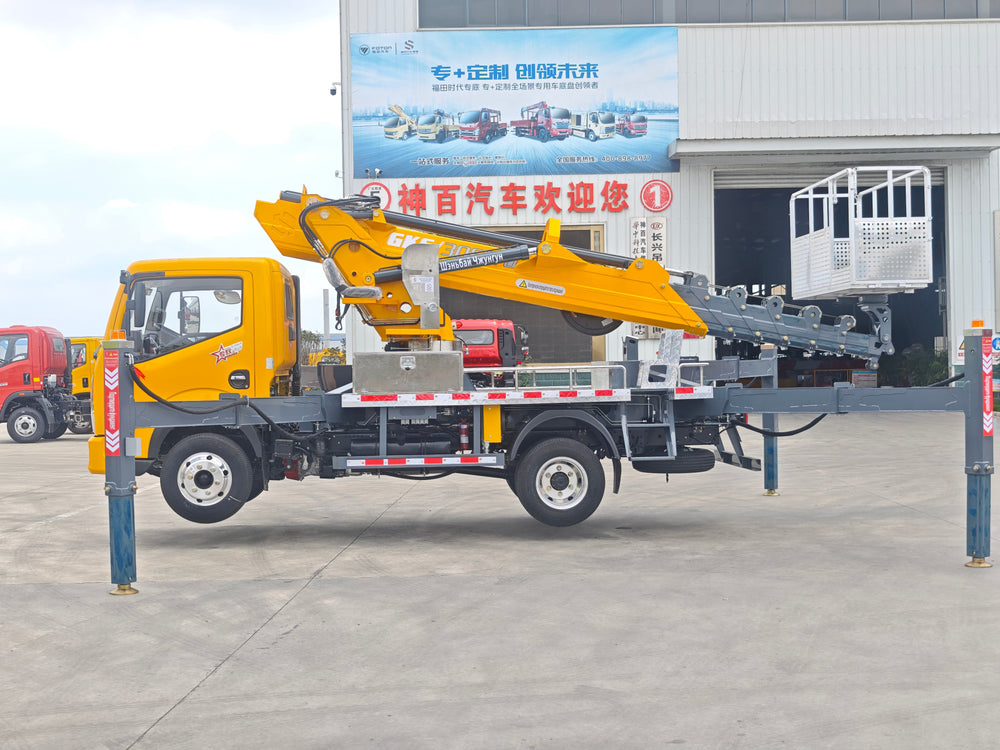

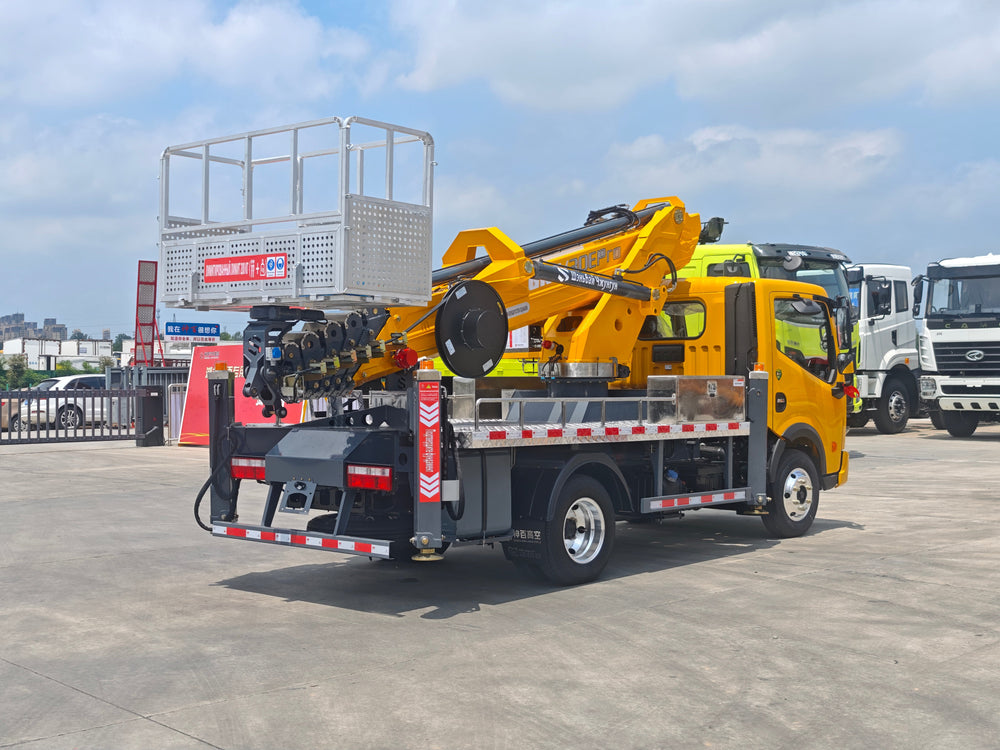

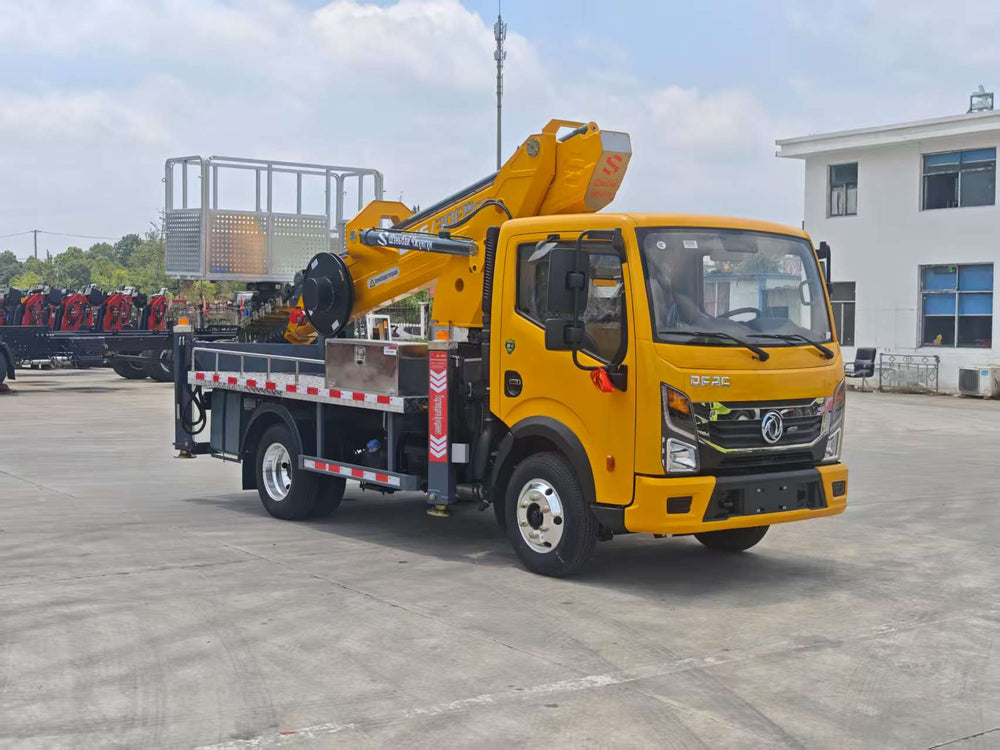

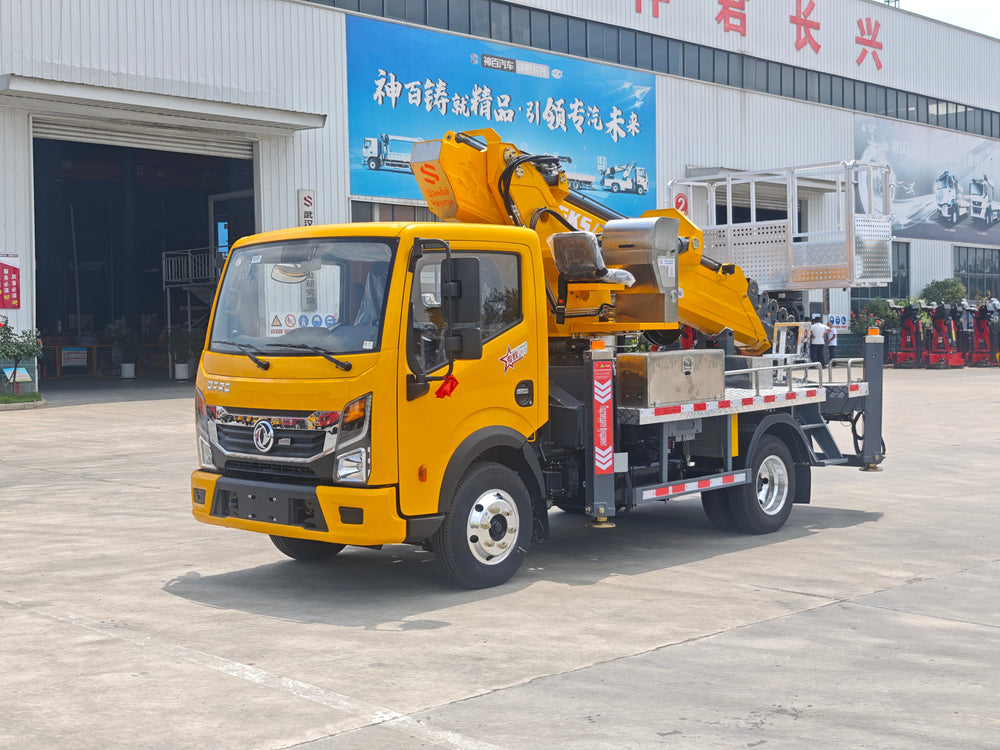

DongFeng GKS30Pro Aerial Work Platform Truck
Request a Quote Now
- Chassis Configuration
| Item | Parameter |
|---|---|
| Chassis Model | Dongfeng Dolica K5 |
| Gross Vehicle Weight | 4495 kg |
| Curb Weight | 4365 kg |
| Engine | Quanchai 150 HP Diesel Engine |
| Transmission | Wanliyang 5-speed Manual Gearbox |
| Wheelbase | 2950 mm |
| Overall Dimension | 5995×2200×2980 mm |
| Tire Spec | 650R16LT |
| Brake | Air Cut-off Brake |

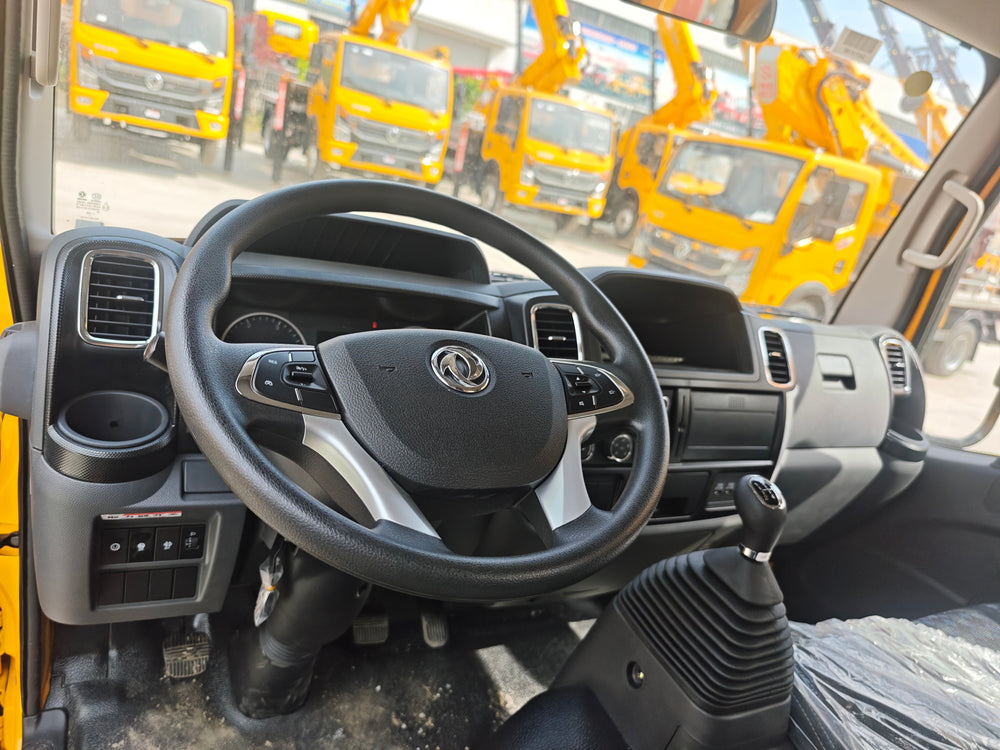

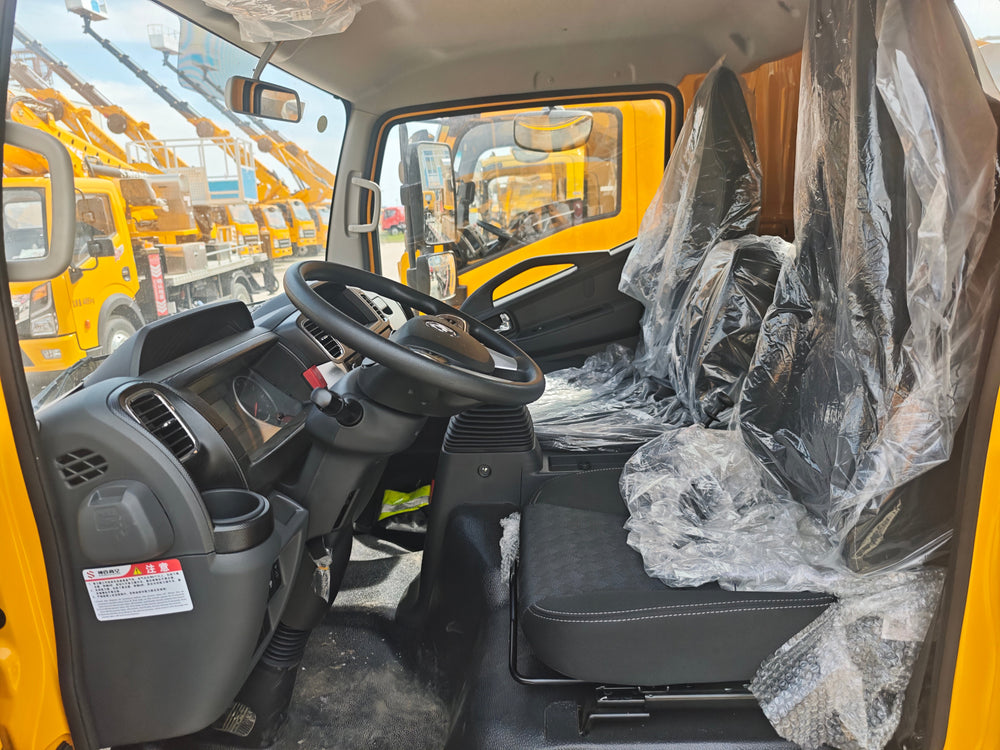

| Standard Fittings | Power Window, Air Conditioner, Central Door Lock |
2. Superstructure (GKS30)
| Item | Parameter |
|---|---|
| Max Working Height | 28.3 m |
| Max Working Radius | 14.5 m |
| Rated Platform Load | 200 kg |
| Boom Slewing | 360° Full Rotation |
| Platform Dimension | 1800×700×1000 mm, max unfolded width:3800mm |
| Platform Rotation | Unlimited 360° Rotation |

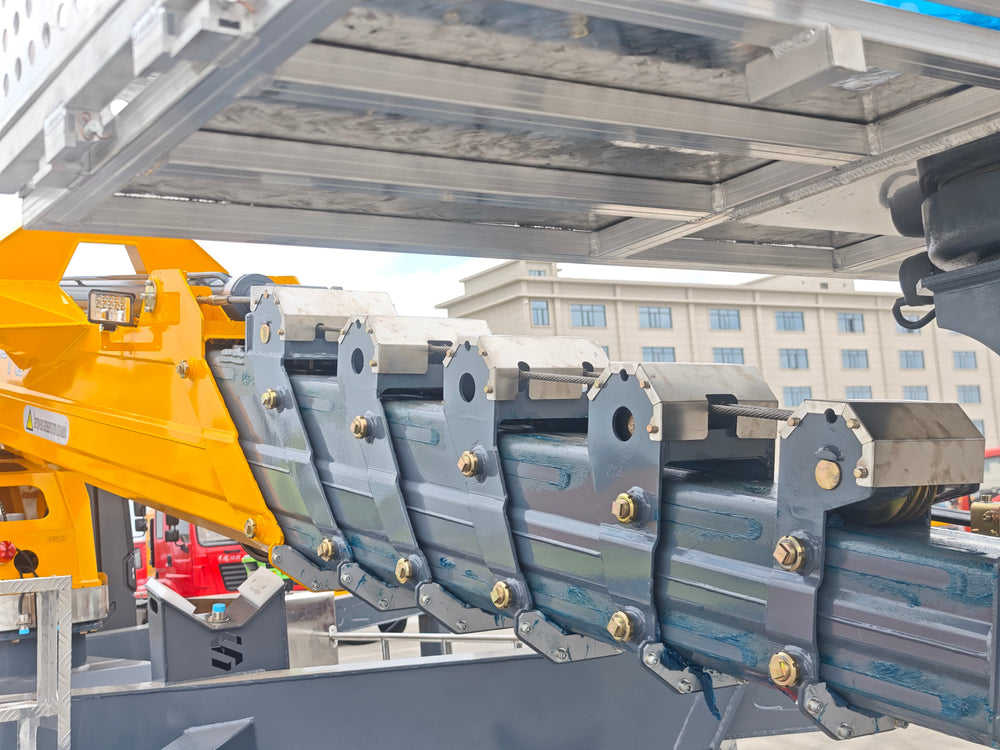

| Boom Structure | 7-section boom, 6-section synchronous stretch; spare steel cable for emergency lowering |
| Boom Material | 960 High-strength Steel Plate |
| Cylinder | Dual Thickened Lifting Cylinders |
| Outrigger | X-type, 4 double-stage independent legs; Span: Trans 6000mm / Long 5800mm |
| Subframe | Box-type Subframe + 3-layer Trapezoidal Reinforced Slewing Base |

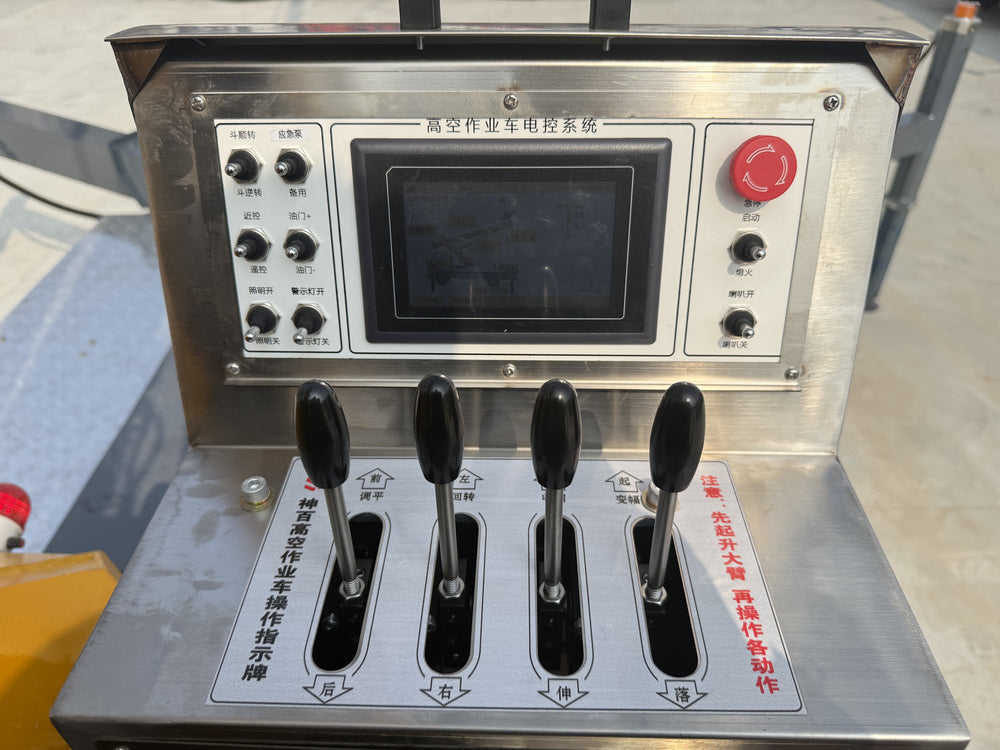

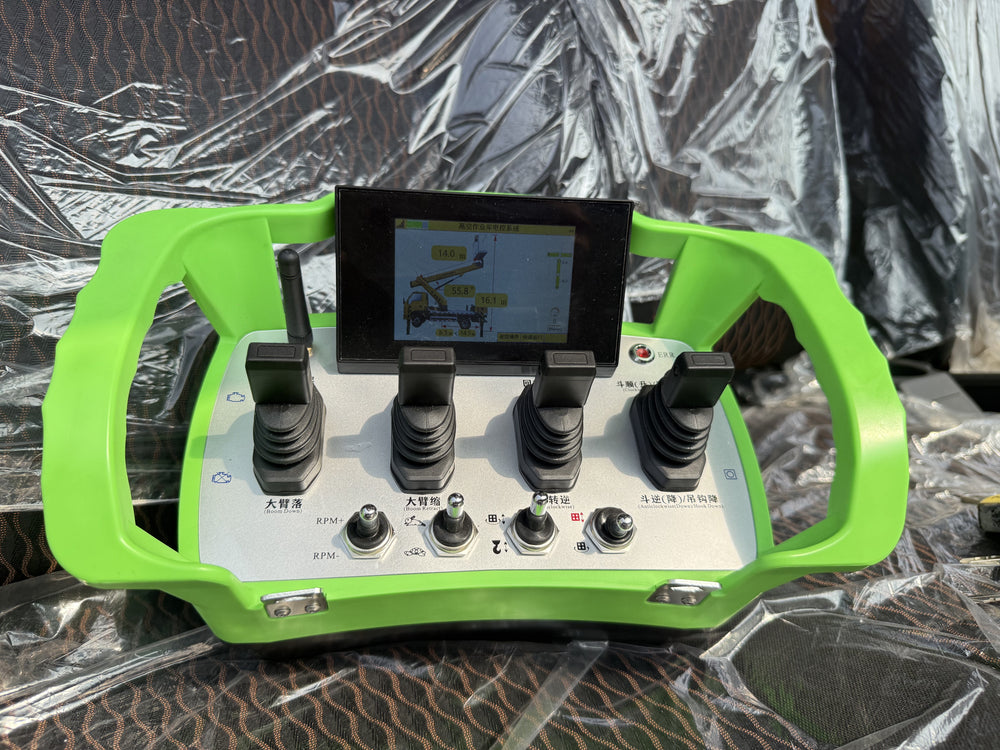

| Control System | Domestic Famous ECU, Wireless Remote + Upper Control with Display Screen |

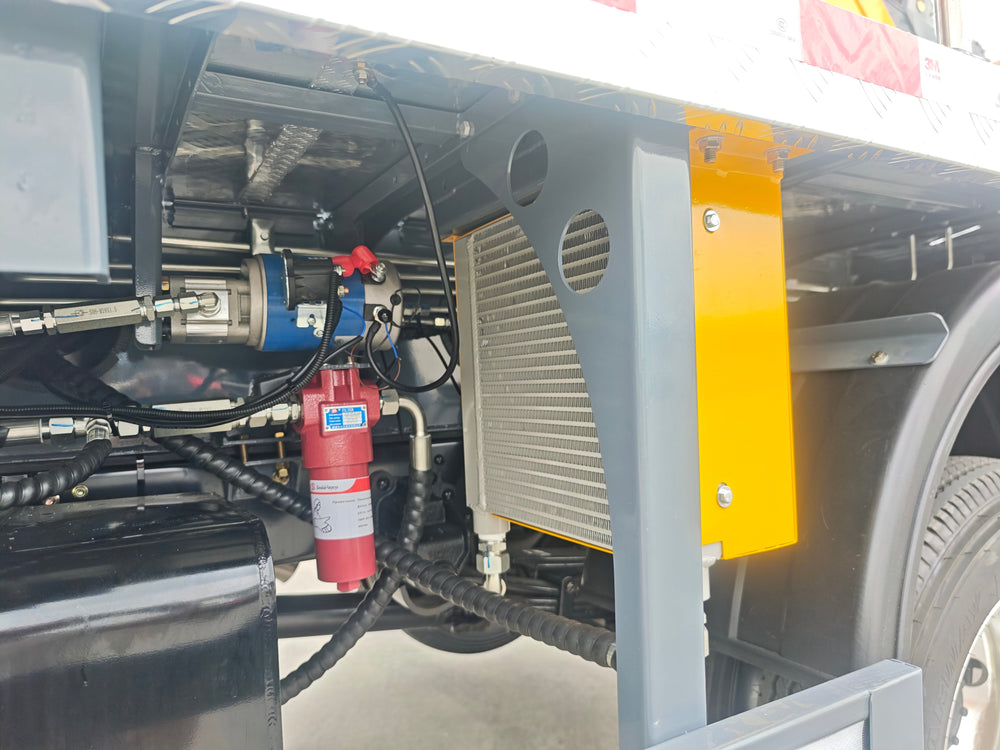

| Hydraulic System | Electro-hydraulic Proportional Valve, Stepless Speed + Emergency Power Unit |
| Walkway | Anti-slip Aluminum Alloy Walkboard |

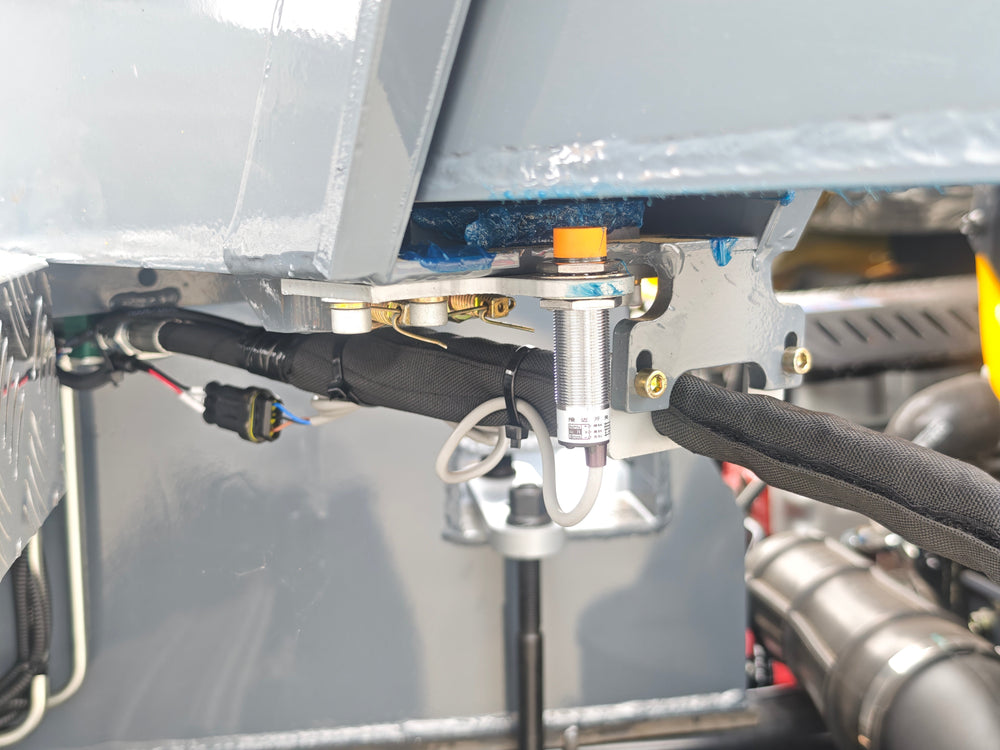

| Safety Devices | Upper-lower Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Outrigger Protection |
| Optional Parts | Upper Operation Cabin, 1T Winch |
| Boom Length | 24.5 m |
| Vehicle Height | 2.9 m |
