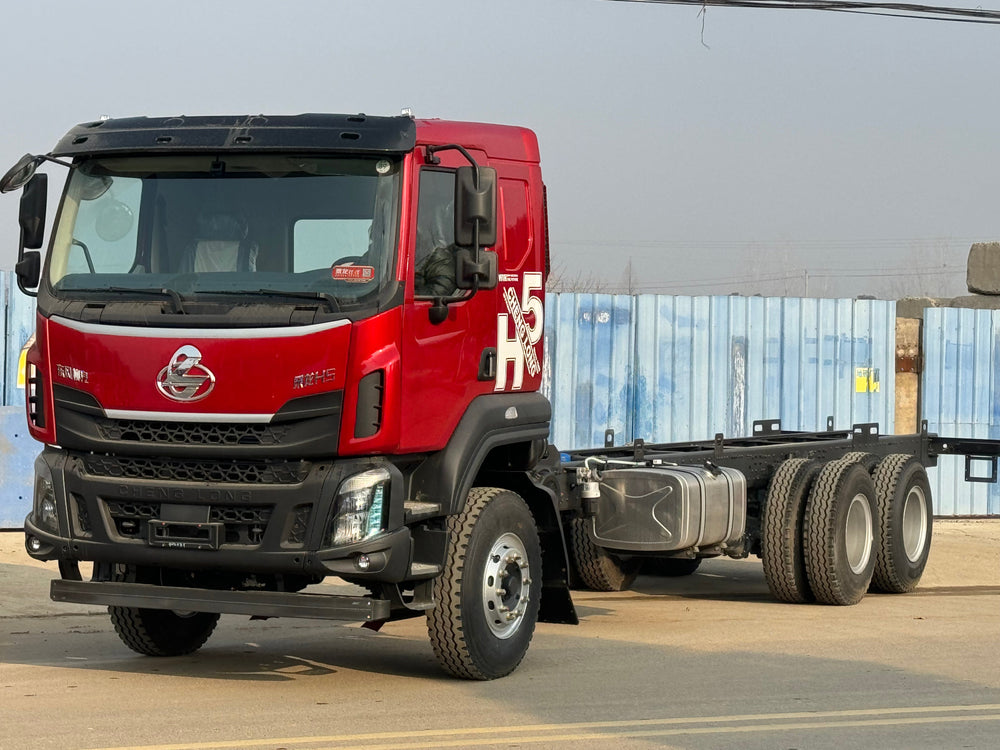

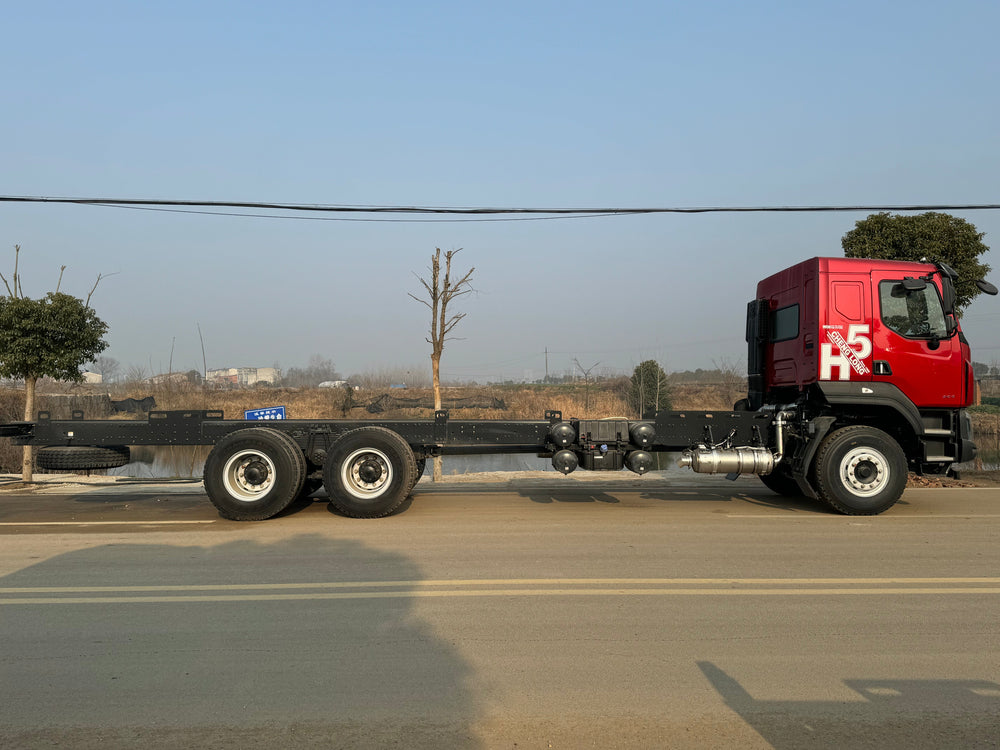

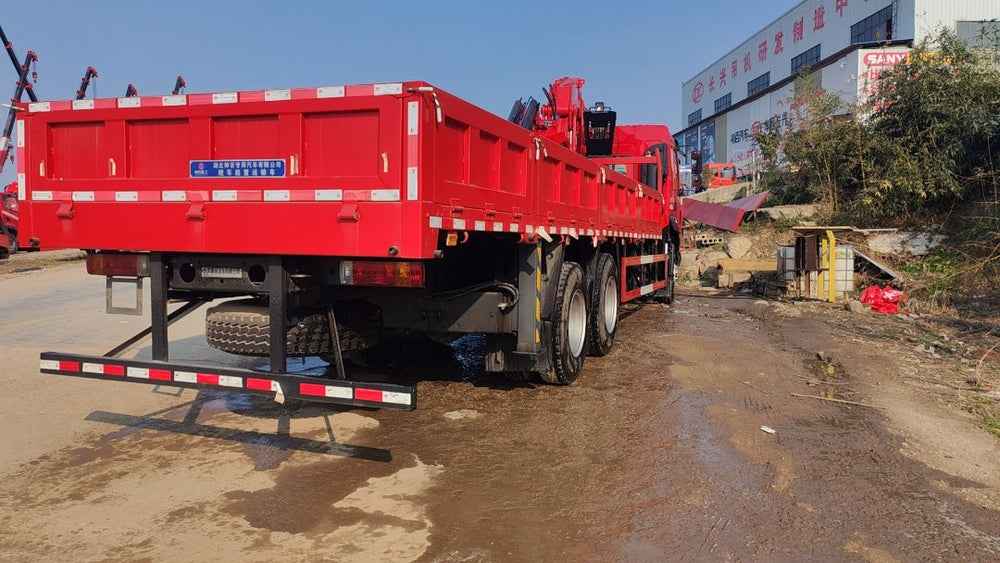

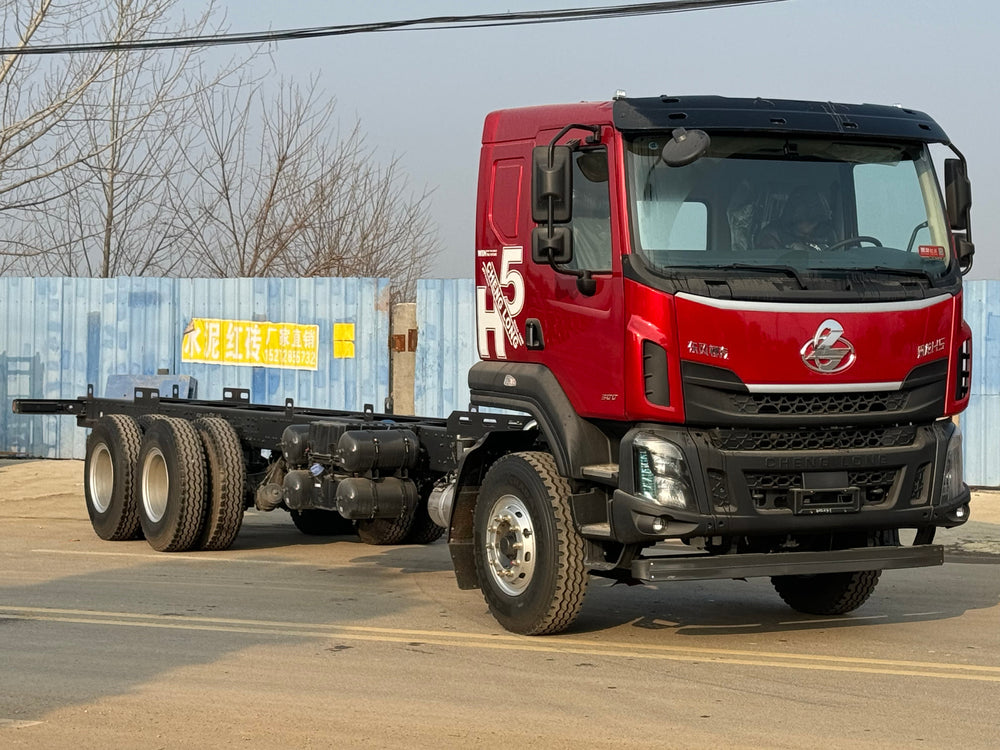

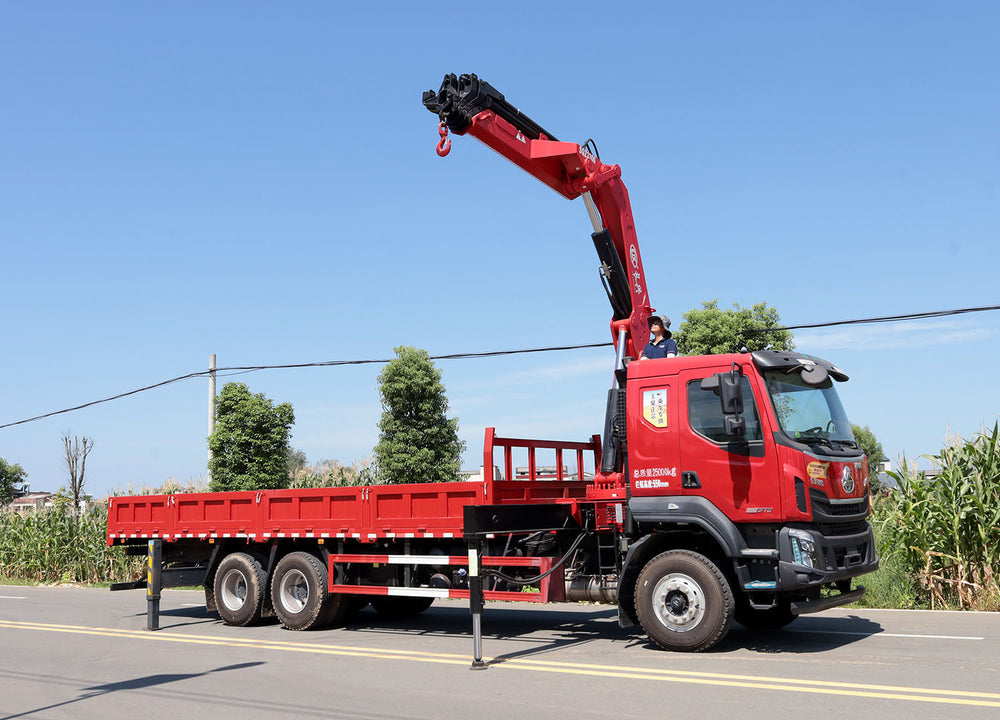

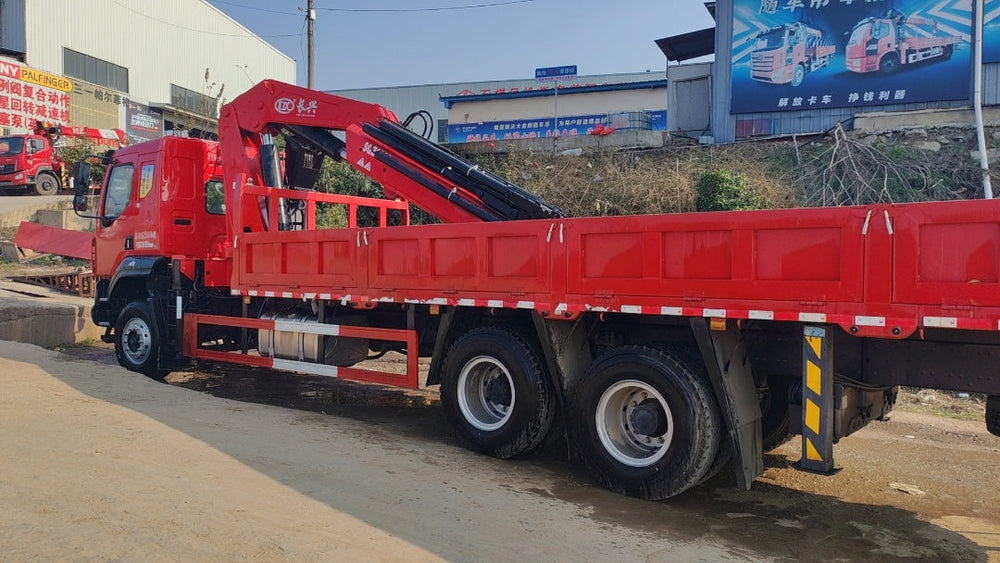

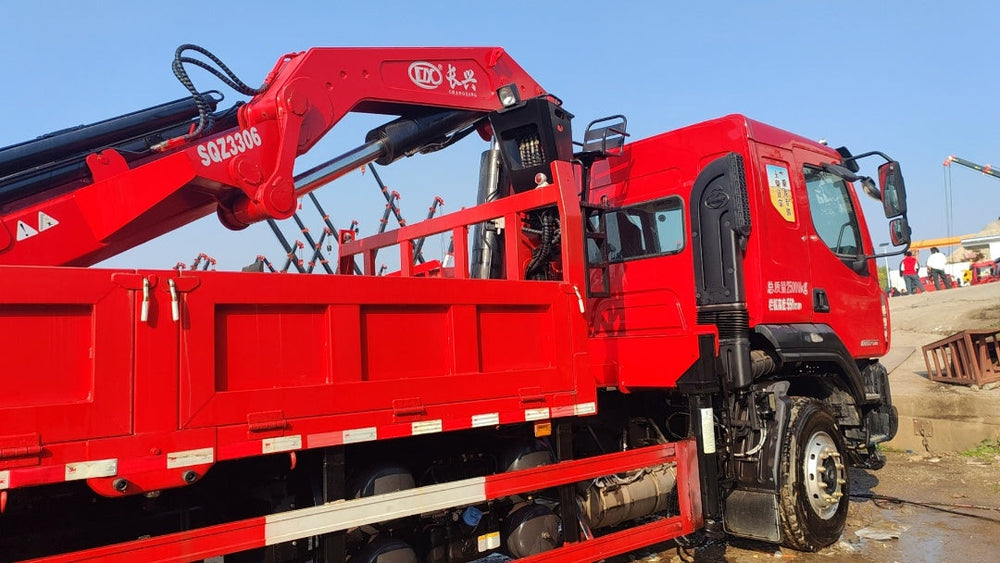

DongFeng 6×4 16T Knuckle Boom Crane

1 / 8

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Item	Specification
Basic Vehicle Information
Kerb Weight	19000KG/18500KG/18000KG/17600KG/16800KG/16100KG; 12-14T announcement covers all domestic crane models for hassle-free registration
Wheelbase	Optional long/short wheelbase: 5850+1350/4800+1350/4350+1350/3850+1350mm
Overall Length	12000/10900/10300/9580mm
Cargo Box Length	8400/7200/6600/6000mm
Chassis & Powertrain Configuration
Engine	Yuchai YCS07L300-66, 7.0L Displacement
Transmission	Fast 9JS119T-B Gearbox, with QHG50 Flange PTO
Front & Rear Axle	6.5T Front Axle / 2×13T Rear Axles; Final Drive Ratio 5.143; Inter-wheel & Inter-axle Differential Locks; Oil-lubricated Wheel Hub
Clutch	Φ430 Pull-type Heavy-duty Clutch
Leaf Spring	11/10 Leaf Springs with Double U-bolts; Reinforced Front Springs
Chassis Frame	300(8+8+4) Baosteel 750 3-layer Laminated Through Frame; with Reinforced Subframe & Rear Outrigger Connecting Plates; 14-step Plastic Spraying & Alkali Washing Coating Process
Fuel Tank	350L Aluminum Fuel Tank
Tyre Spec	11.00R20 Steel Wire Heavy-duty Tyre
Electrical System	150AH Battery, 80A Alternator, Maintenance-free Battery
Control Features	Rocker-type Self-return Remote Throttle; Under-vehicle Start/Stop Function
Exterior Fittings	Color-matched Bumper + Fender; High-position Reinforced Bumper
Cab & On-board Configuration
Cab Body	H51S Height-lowered Cab with H5 Decal; 4-point Fine-adjusted Full-floating Cab Suspension (Domestic Exclusive Technology); Manual Hydraulic Tilt
Seats	Knitted Air Suspension Driver Seat; Knitted Fixed Passenger Seat
Steering & Control	Leather Steering Wheel; Electric Window Lifter; Remote Central Lock; Multi-mode Switch
Climate Control	Manual Air Conditioner
On-board Terminal	Driving Recorder with Beidou/GPS Compatibility; Chenglong V+ Telematics System
Safety & Auxiliary	Right Turn Reminder; Overspeed Alarm; Anti-lock Braking System (ABS); External Sun Visor
Entertainment & Instrument	MP3 + Radio; 5-inch Black & White Combination Instrument
Lighting	Halogen Main Headlights
Exterior Marking	Standard Vehicle Trademark
