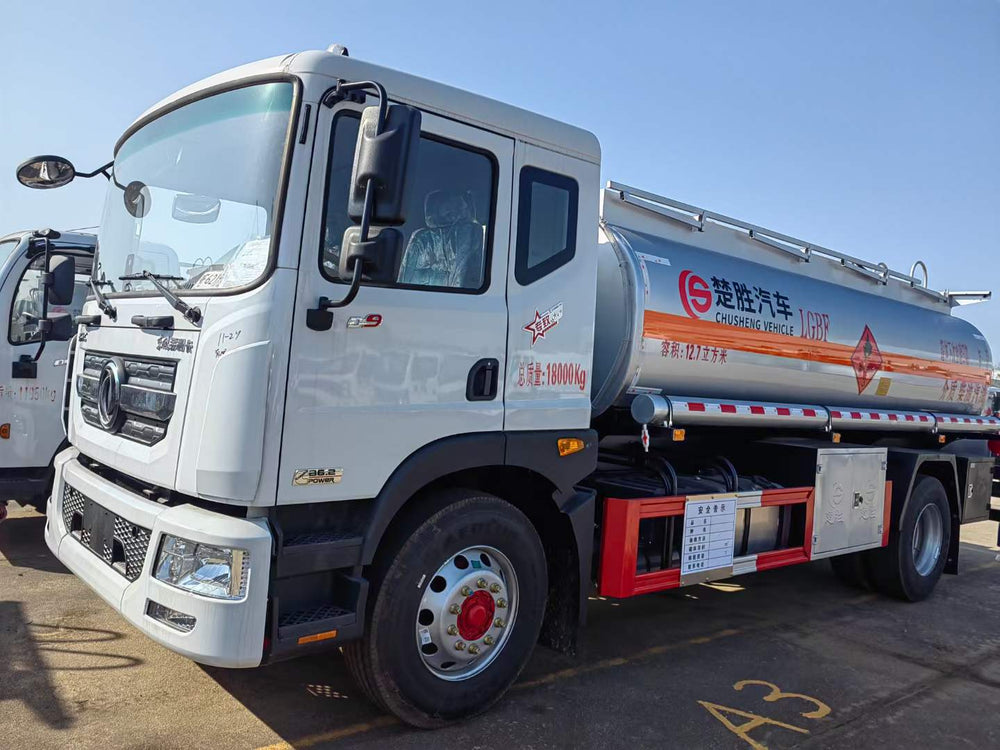

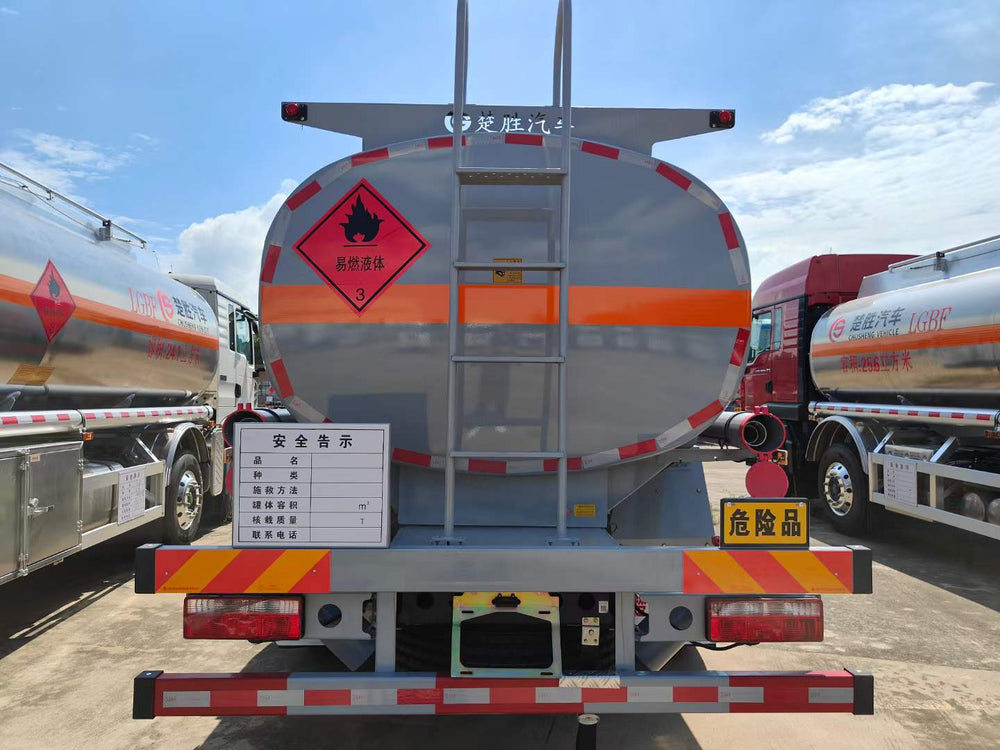

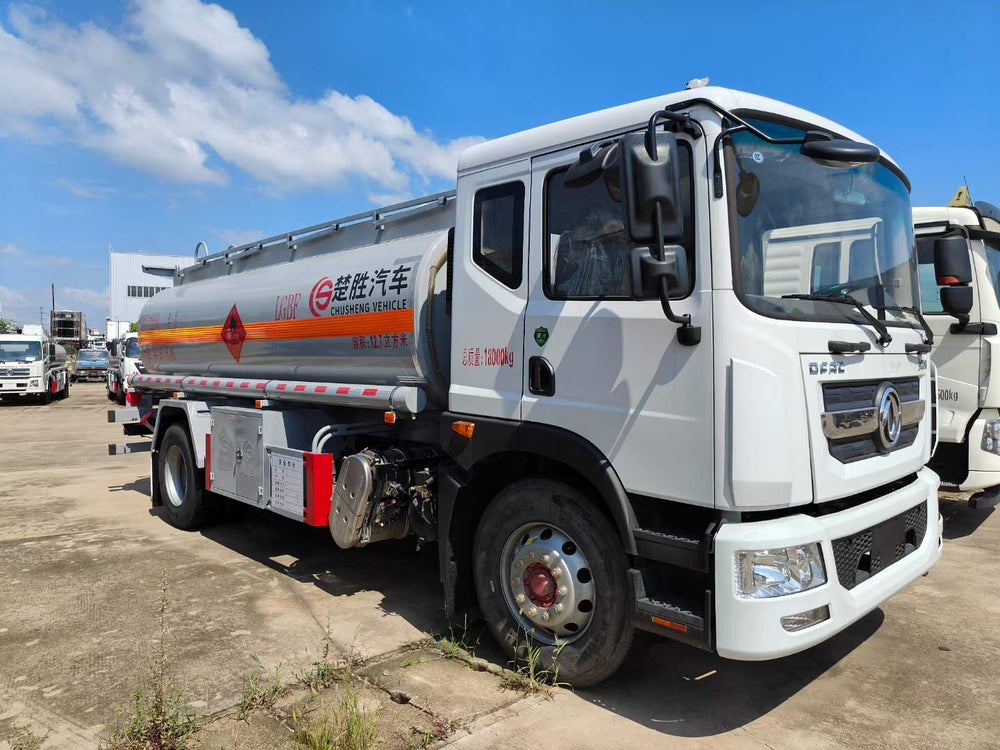

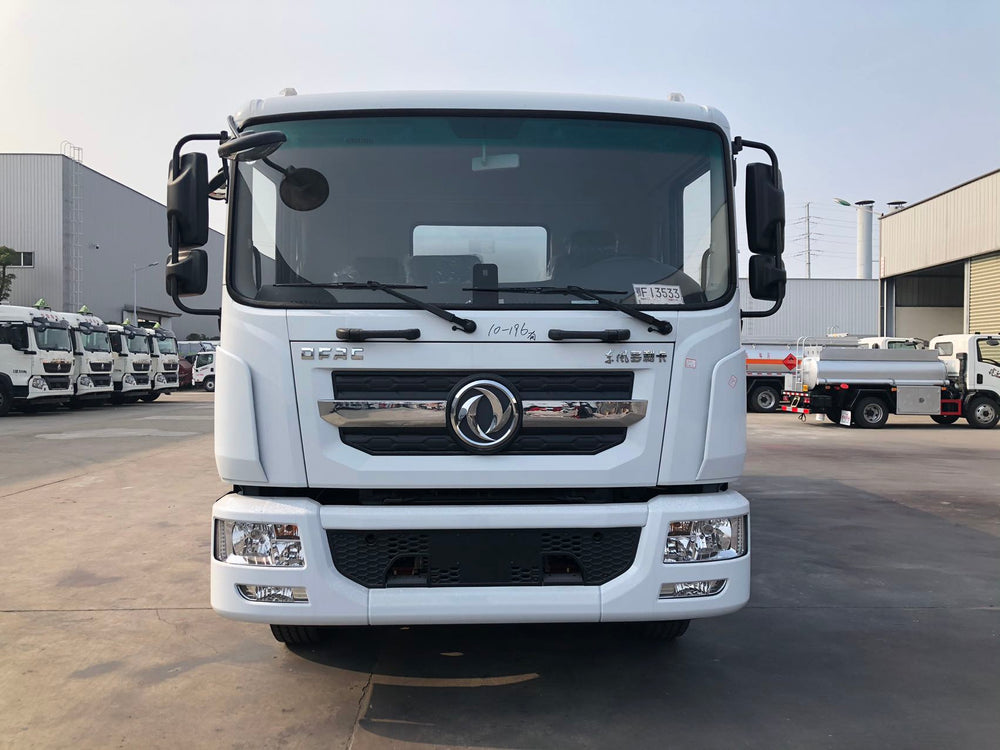

DongFeng 230HP Oil Tank Truck（12.7-14.5m³）

1 / 4

Request a Quote Now

Parameter	Value
Cab Type	Dongfeng Duolika D9, 2315 Half-Row Cab
Wheelbase	4700 mm
Engine Model	B6.2NS6B230
Engine Power	Cummins 230 HP
Transmission	Fast 8JS95 with Power Take-Off
Tire Specification	295/80R22.5
Tire Safety Feature	Explosion-Proof Tires
Front Axle Rated Load	4.5 Tons
Rear Axle Brand & Load	Dana 10-Ton Rear Axle
Frame Specification	860-250×80×(7+4) Double-Layer Frame
Suspension System	Air Suspension
Driver Seat	Airbag Suspension Seat
Cab Interior	Air Conditioner, Electric Windows, Central Door Locking
Brake System	ABS, EBS (Electronic Braking System), AEBS (Advanced Emergency Braking System)
Stability Control	ESC (Electronic Stability Control)
Advanced Safety Systems	Collision Warning, Lane Departure Warning, Tire Pressure Monitoring

Parameter	Value
Vehicle Type	Oil Tanker / Fuel Dispenser Truck
Transport Medium	Diesel, Gasoline
Tank Body Thickness	5 mm (≥ 4.2 mm)
Tank Head Thickness	5 mm (≥ 4.2 mm)
Power Take-Off Switch	Mounted above clutch pedal
Pump System	Equipped with pump
European Standard Manholes	2 units
Bottom Valve	1 unit (with separate left & right valve boxes)
Bottom Loading System	1 unit (installed on passenger side)
Vapor Recovery System	1 unit
Anti-Overflow System	Anti-overflow probe and socket
Bottom Valve Alarm	Acoustic-optical automatic alarm system
Pump Inlet/Outlet	Installed on passenger side
Side Toolbox	1.05m long on driver side (reserved interface, 2 ball valves)
Tank Sealing	Fully sealed tank body with structural bracing
Drip Valve	Small ball valve with drip hole at front end of barrel pipe
Triangular Top Light	Equipped
Static Grounding Reel	Equipped
Toolbox	1 unit
Folding Guardrail	Equipped
Fire Cap	1 unit
Oil Delivery Pipes	2 pipes equal to tank body length
Fire Extinguishers	2 units
Other Accessories	Remaining factory standard configuration
Dimension Compliance	Tank body and overall vehicle dimensions strictly per official announcement

Model No.	Vehicle Type	Total Volume	Transport Medium	Tank Dimension (L×W×H)
CSC5185GYY6A	Oil Tanker	12.7 m³	Gasoline, Diesel	5700 × 2000 × 1400 mm
CSC5185GJY6A	Fuel Dispenser Truck	12.7 m³	Gasoline, Diesel	5700 × 2000 × 1400 mm
CSC5185GYY6	Oil Tanker	14.5 m³	Gasoline	5700 × 2150 × 1480 mm
