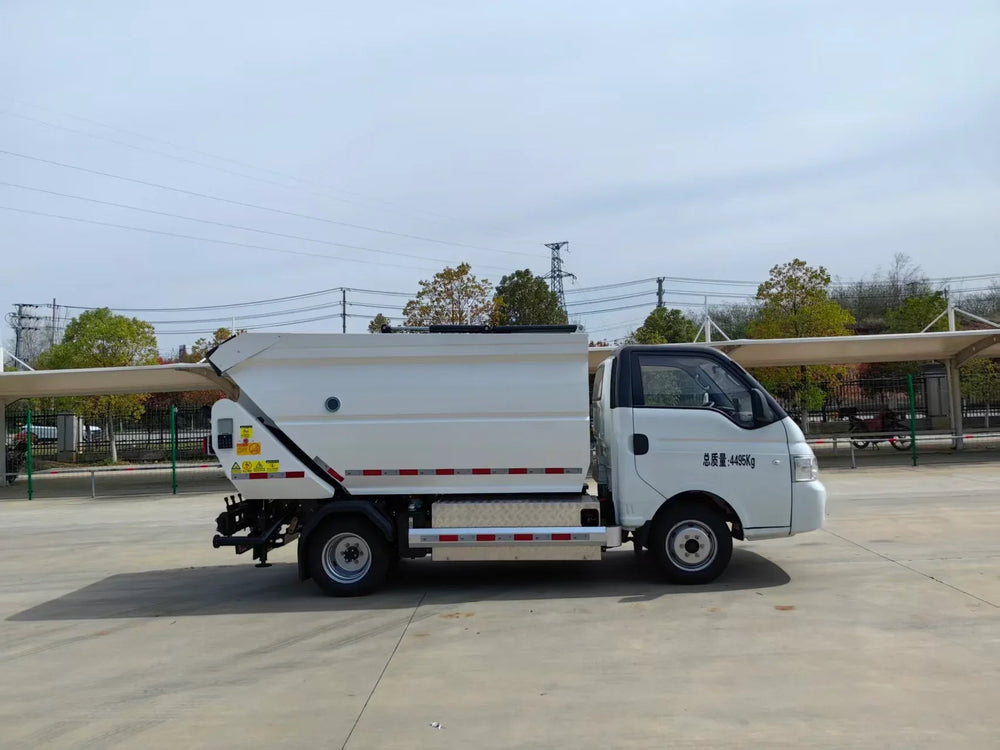

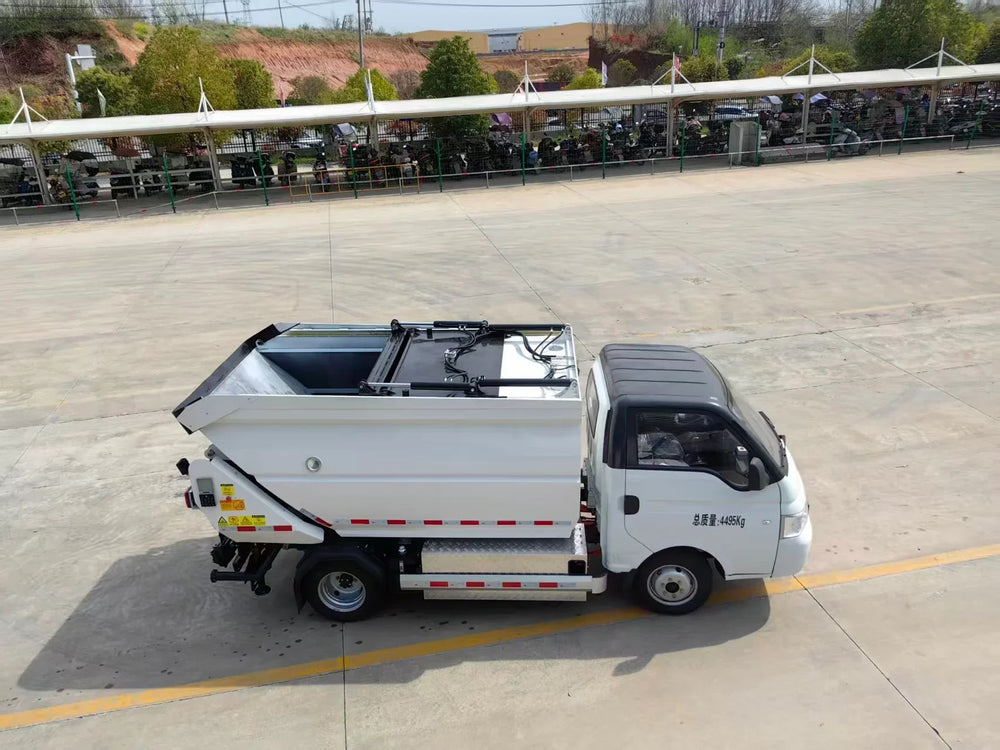

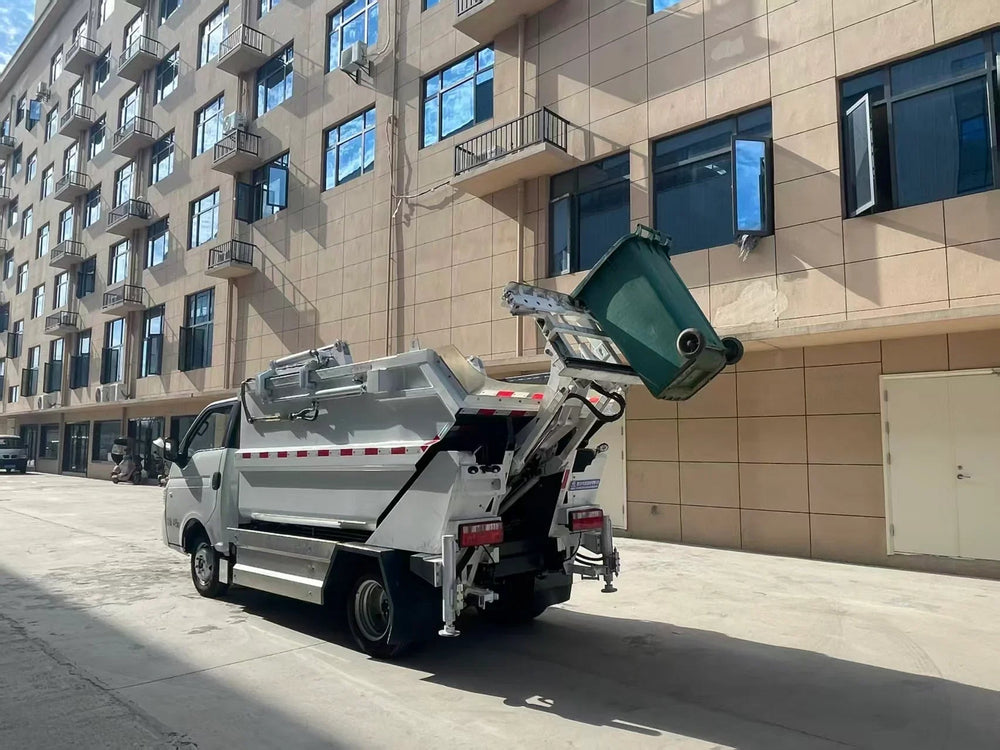

4.5T EV Self-loading Dump Truck

1 / 3

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Parameter	Core Specification
1. Whole Vehicle Basic Parameters
Vehicle Model	CL5048ZZZBEV Battery Electric Self-Loading/Unloading Garbage Truck
Gross Vehicle Weight (GVW)	4495 kg
Curb Weight	3360 kg / 3250 kg
Payload Capacity	1005 kg / 1115 kg
Rated Passenger Capacity	2 persons
Cab Model	Kaima
Overall Dimensions (L×W×H)	5180×1890×2230mm / 5180×1890×2095mm
Wheelbase	2800 mm
Front / Rear Overhang	1210 / 1170 mm
Approach / Departure Angle	21° / 20°
Front / Rear Track Width	1405 / 1240 mm
Minimum Ground Clearance	185 mm
Minimum Turning Diameter	13 m
Tire Specification	185R15LT 8PR
2. Chassis & Electric Powertrain Parameters
Chassis Manufacturer	Chengli Automobile Group Co., Ltd.
Chassis Model	CL1041JBEV
Drive Configuration	4×2
Battery Type	Lithium Iron Phosphate (LFP)
Battery Manufacturer	Gotion High-tech
Battery Capacity	57.6 kWh
Nominal Voltage / Capacity	384V / 150Ah
Battery System Energy Density	140.3 Wh/kg
Drive Motor Manufacturer	Chengdu Yiwei New Energy Automobile Co., Ltd.
Drive Motor Model	TZ210XSZ03
Rated / Peak Power	55 / 110 kW
Rated / Peak Torque	150 / 318 Nm
Rated / Peak Speed	3500 / 12000 rpm
Maximum Speed	90 km/h
Driving Range	265 km (40km/h constant speed)
Maximum Gradeability (Fully Loaded)	25%
Fast Charging Time (30%-80% SOC)	0.5h (single-gun fast charge)
3. Specialized Upper Equipment Parameters
Garbage Bin Maximum Volume	4.5 m³ / 4 m³
Bin Lifting Capacity	300 kg
Actual Loading Capacity	2 t / 1.5 t
Maximum Lifting Capacity	2.8 t
Hydraulic System Maximum Pressure	16 MPa
Compatible Standard Garbage Bins	120L single bin / 120L double bins / 240L single bin / 240L double bins (660L bin lifting mechanism optional)
Garbage Bin Lifting Time	25±3 s
Garbage Bin Lowering Time	20±3 s
Bin Lifting Cycle Time	10±2 s
Bin Lowering Cycle Time	6±2 s
Compression Cycle Time	26±2 s
