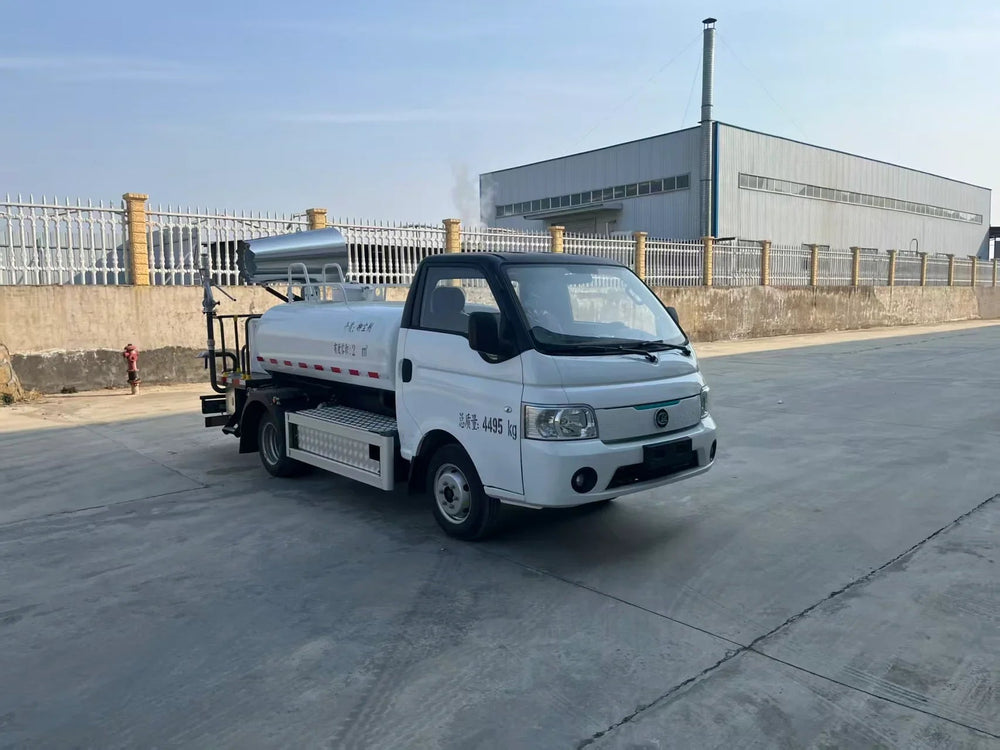

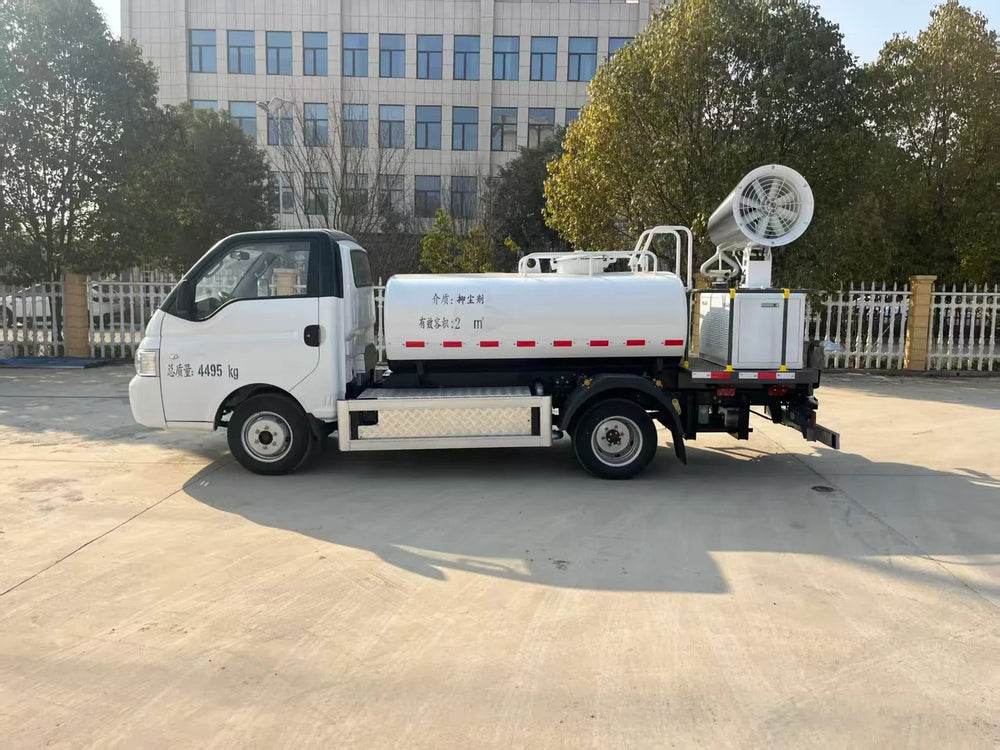

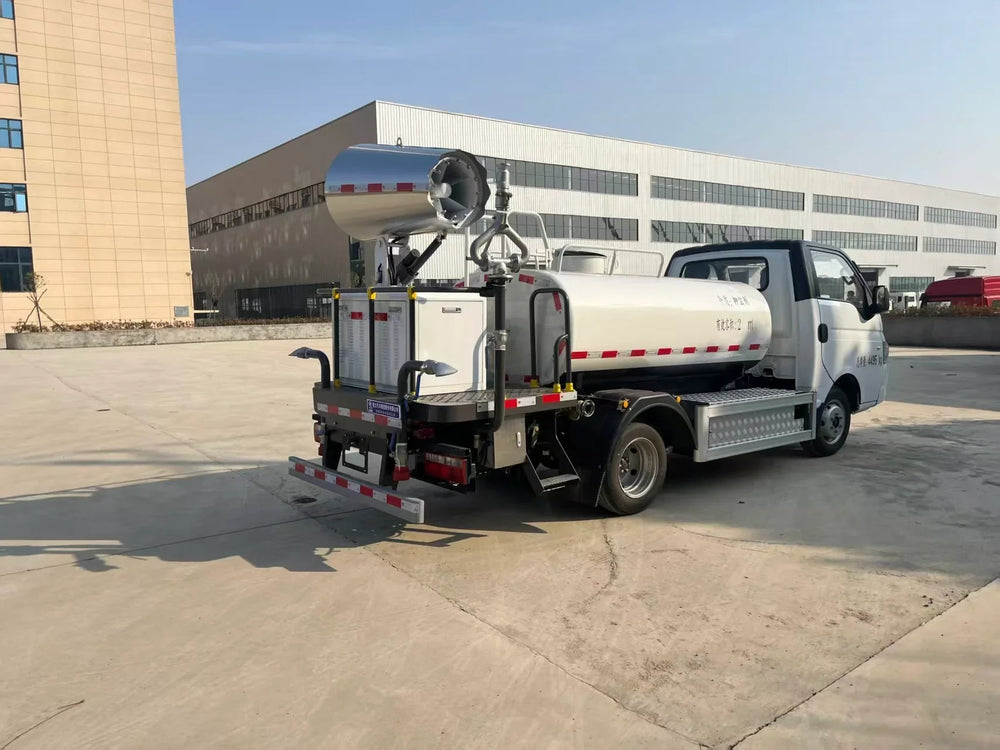

4.5T EV Multi-purpose Dust Control Truck

1 / 3

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Eco-friendly electric sanitation truck with water sprinkling, high-pressure washing & fog cannon for dust suppression.

Parameter	Core Specification
1. Whole Vehicle Basic Parameters
Vehicle Model	CL5040TDYBEV Battery Electric Multi-Function Dust Suppression Truck
Gross Vehicle Weight (GVW)	4495 kg
Curb Weight	2850 kg
Payload Capacity	1515 kg
Rated Passenger Capacity	2 persons
Cab Model	Kaima
Overall Dimensions (L×W×H)	5800×1910×2550 mm
Wheelbase	2800 mm
Front / Rear Overhang	1210 / 1790 mm
Front / Rear Track Width	1405 / 1240 mm
Approach / Departure Angle	21° / 10°
Minimum Ground Clearance	185 mm
Minimum Turning Diameter	13 m
Tire Specification	185R15LT 8PR
2. Chassis & Electric Powertrain Parameters
Chassis Manufacturer	Chengli Automobile Group Co., Ltd.
Chassis Model	CL1041JBEV
Drive Configuration	4×2
Battery Type	Lithium Iron Phosphate (LFP)
Battery Manufacturer	Gotion High-tech
Battery Capacity	57.6 kWh
Nominal Voltage / Capacity	384V / 150Ah
Battery System Energy Density	140.3 Wh/kg
Drive Motor Manufacturer	Chengdu Yiwei New Energy Automobile Co., Ltd.
Drive Motor Model	TZ210XSZ03
Rated / Peak Power	55 / 110 kW
Rated / Peak Torque	150 / 318 Nm
Rated / Peak Speed	3500 / 12000 rpm
Maximum Speed	90 km/h
Driving Range	265 km (40km/h constant speed)
Maximum Gradeability (Fully Loaded)	25%
Fast Charging Time (20%-100% SOC)	1.0h (single-gun fast charge)
3. Specialized Upper Equipment Parameters
Water Tank Dimensions (L×Major Axis×Minor Axis)	2400×1400×800 mm
Certified Effective Water Tank Volume	2 m³
Total Water Tank Volume	2.1 m³
Upper Equipment Motor Rated Power	10 kW
Upper Equipment Motor Rated Speed	1500 r/min
Low-Pressure Water Pump Brand	Hangzhou Weilong
Water Pump Model	50QZR-15/45N
Fog Sprayer Nozzle Quantity	16 pcs
Fog Sprayer Horizontal Range	30-40 m
Front Flushing Width	≥14 m
Rear Sprinkling Width	≥8 m
Water Cannon Range	≥20 m
Sprinkling Speed	To be supplemented (no value provided in original parameters)
